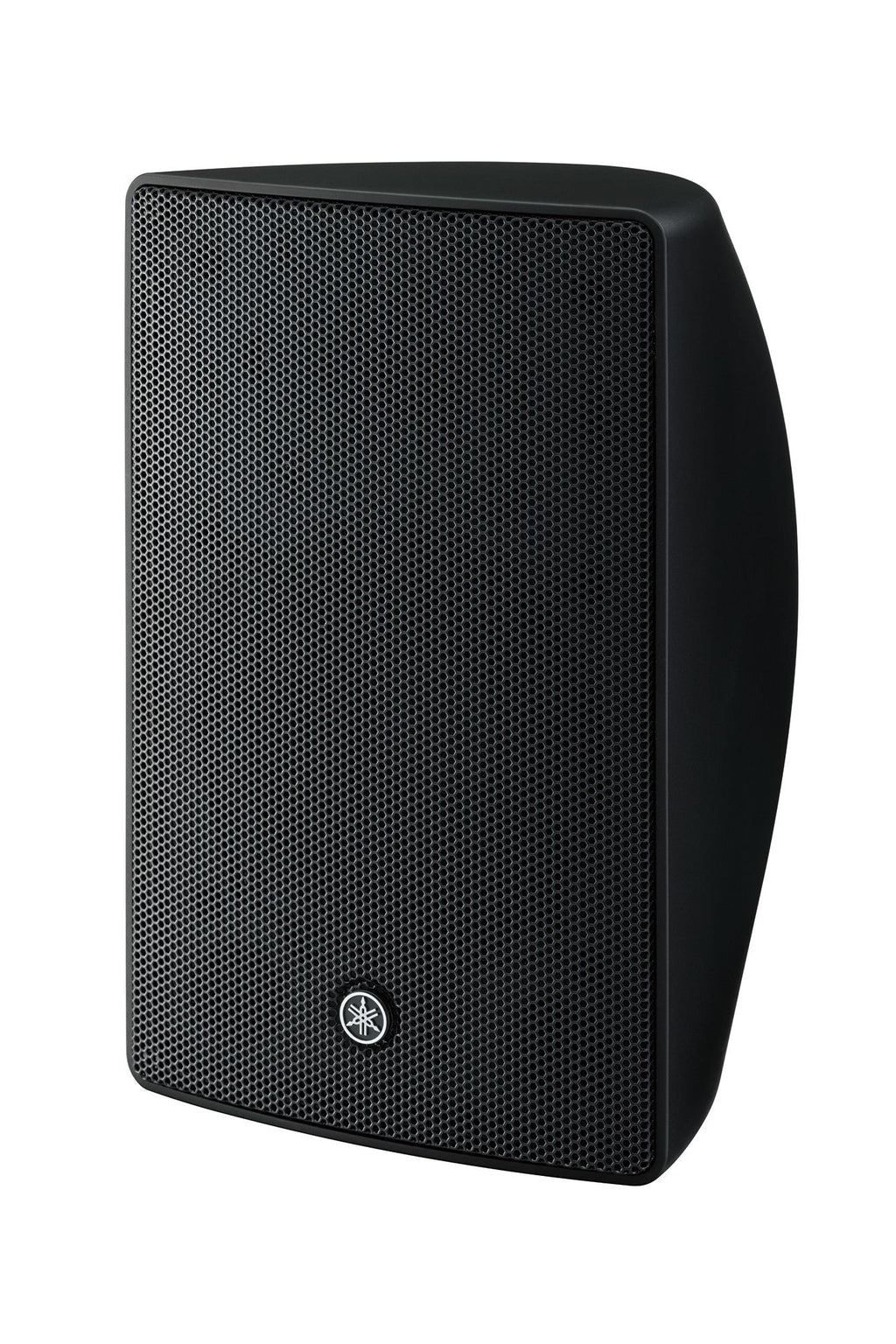

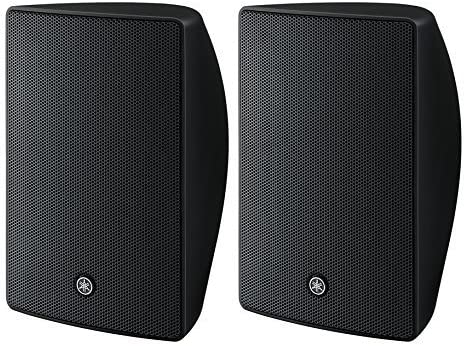

Yamaha VXS5, Commercial Surface Mount 5 1/4" Speaker, Black. Water Resistant

Yamaha VXS5, Commercial Surface Mount 5 1/4"  Speaker, Black. Water Resistant

2-way, 5.25" woofer with 0.75 tweeter. 150W program at 8Ω. 30/15/7.5/3.8W 70V taps. Black finish

Full-range sound from an on-wall speaker

Yamaha VXS speakers provide background music and live paging for small businesses, and they're designed to fit into your decor. Each provides a 5-1/4" woofer and 3/4" soft dome tweeter for wide coverage and exceptional voice clarity. These speakers feature multi-tap transformers for use with 70-volt or 100-volt audio systems, while an 8-ohm bypass setting allows use with regular home audio receivers and amps.

Yamaha VSX5 Speaker Key Features

• On-wall speaker with 5-1/4" woofer and 3/4" soft dome tweeter in a bass-reflex enclosure
• 120° conical coverage angle
• 70V taps: 3.8W, 7.5W, 15W, 30W
• 150W program at 8 ohms; 80-20,000 Hz
• Frequency response: 62-20,000 Hz (-10 dB)
• Maximum SPL: 114 dB

• Sensitivity: 89 dB

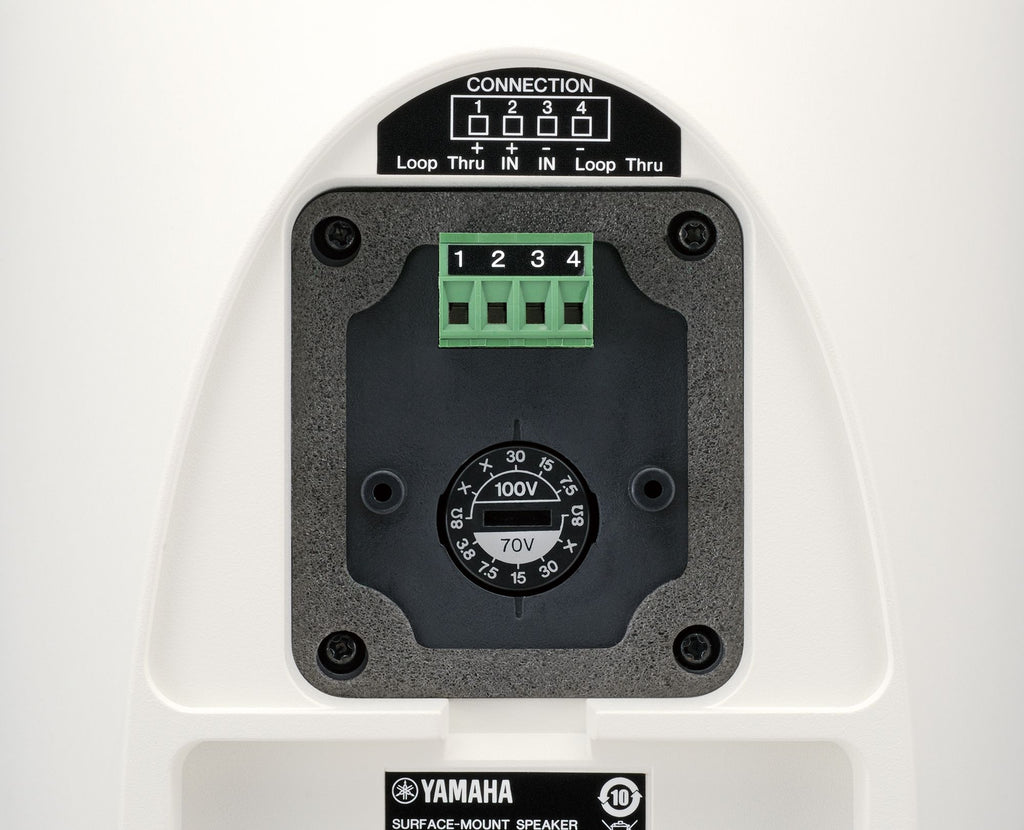

• Multi-tap transformer for 70V or 100V systems
  • 30, 15, 7.5 and 3.8-watt taps
  • 8-ohm bypass setting for use with regular home audio receivers and amps
• Wall mounting hardware included
• Paintable powder-coated aluminum grille
• 6-15/16"W x 11"H x 6-7/16"D
• Weight: 7.9 lbs.
• Warranty: 1 year

What's in a Box

•  Surface-mount loudspeakers
• 2 Grilles (pre-installed)
• 2 Speaker brackets
• 2 Wall brackets
• 2 Bracket covers
• 2 Terminal covers
• Owner's Manual
• 4 Phillips-head screws (lock-/flat-washers attached)
• 2 Hex-head screws (lock-/flat-washers attached)
• 2 Security cables (with hardware)
• Hex-key
• 2 Carter-keys
