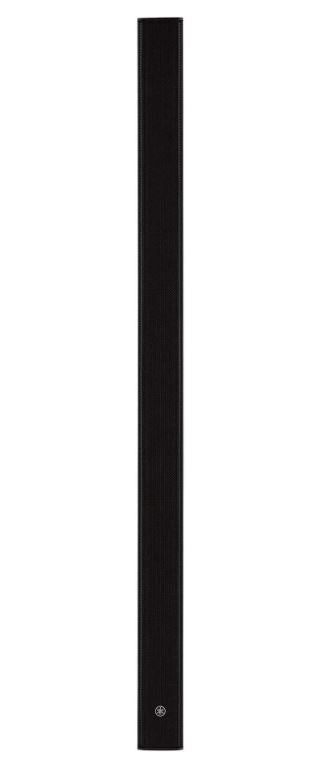

Yamaha VXL1B-16 16 Full Range 1.5 Inch Drivers, 40W, Program At 16 Ohm - Black

Sale priceTk 82,000.00

Description +-

Yamaha VXL1B-16 16 Full Range  1.5 Inch Drivers, 40W, Program At 16 Ohm - Black

15-watt Active Speaker with 16 x 1.5" Full-range Drivers, and Dante and PoE Support - Black (each)

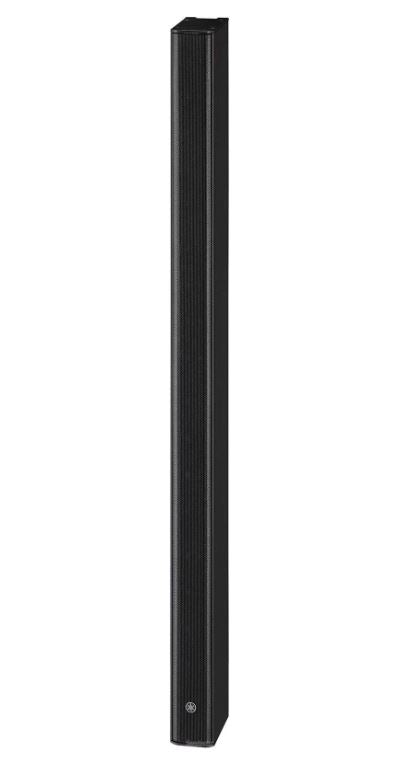

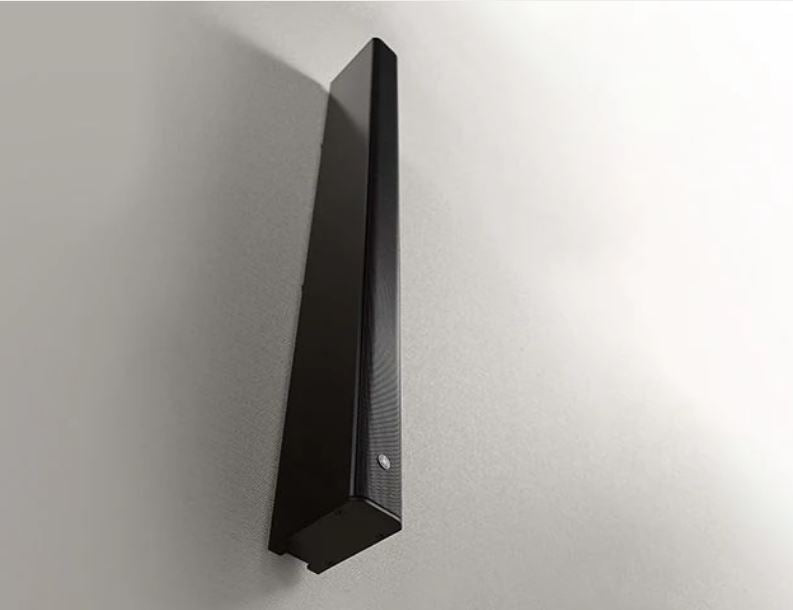

 Slim Line Source Loudspeakers Blend High Sound Quality with Visual Elegance

The VXL1 series cabinets feature 2.1-inch (54mm) wide enclosure with a slim, elegant profile that blends effortlessly into any décor. At the heart of the designs are high-performance, 1.5-inch, full-range drivers configured to deliver natural response down to 77 Hz* for full-range performance that is ideal for speech and music reproduction.

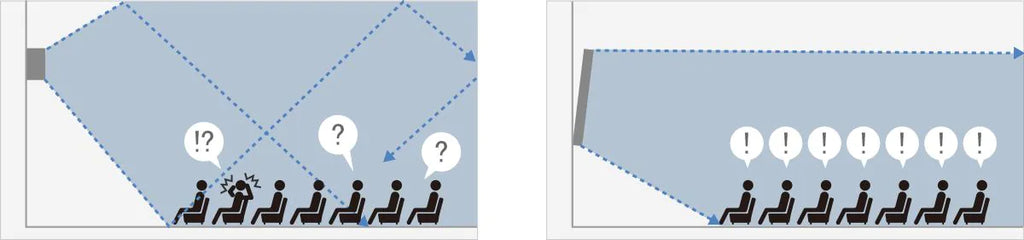

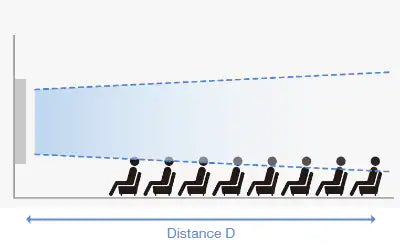

High-performance drivers with neodymium magnets are arranged vertically to create a line source that achieves outstanding projection. By focusing sound in the vertical direction, reflections can be minimized resulting in high-clarity and intelligible sound in the target area.

Yamaha VXL1W-16 Active PA Speaker Features:

  • 15W active speaker with 16 x 1.5" full-range drivers
  • 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
  • 16-driver line-array configuration delivers top-notch sound quality
  • 170° horizontal dispersion for uniform SPL over a wide listening area
  • Vertical coverage can be selected as 20°(Standard) or 40°(Wide)
  • Dante enables you to use your existing Ethernet network to route audio
  • PoE powered — no external power amp required
  • Slim design complements any interior décor
  • Enclosure can be painted to match its surroundings

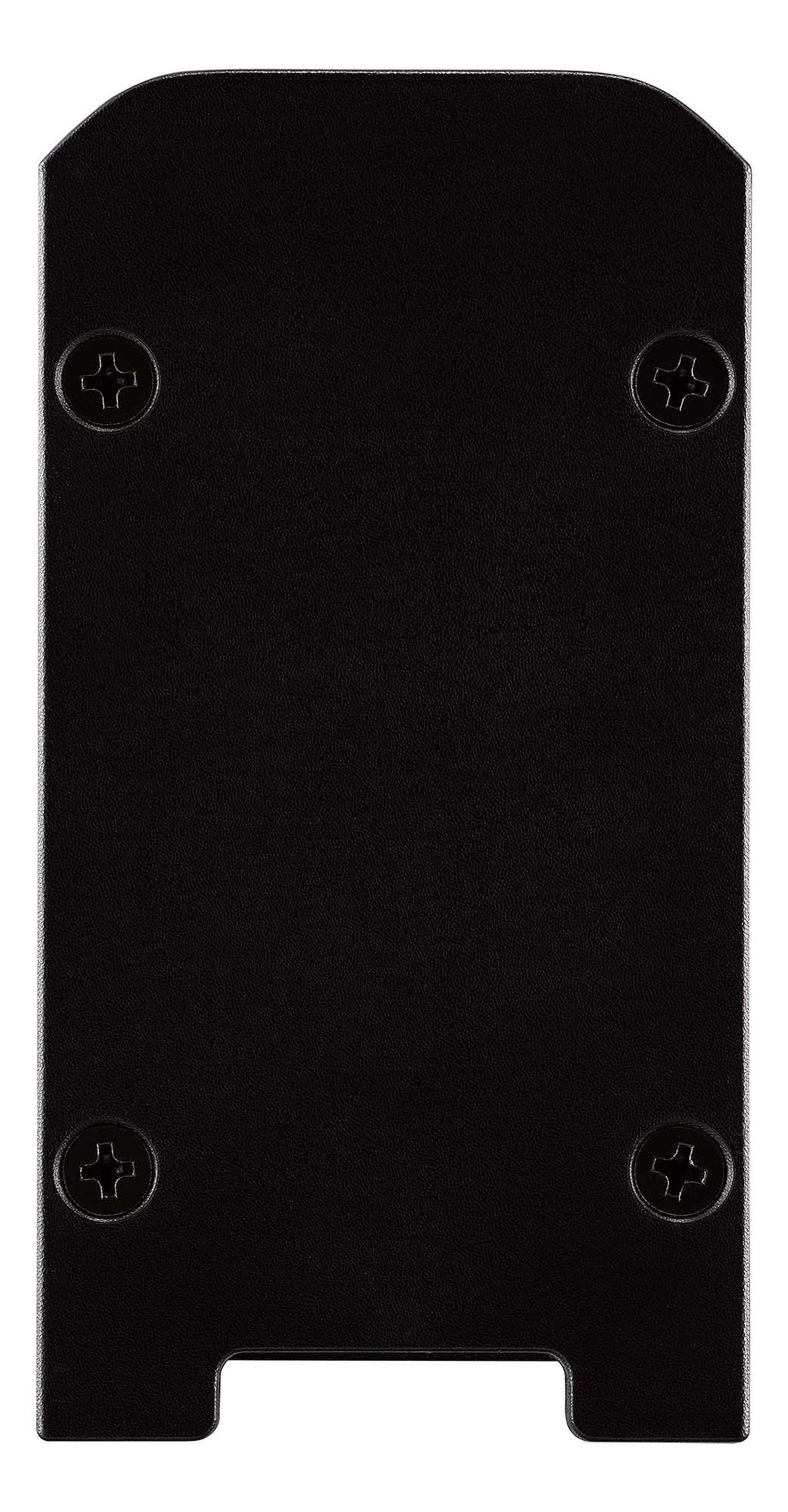

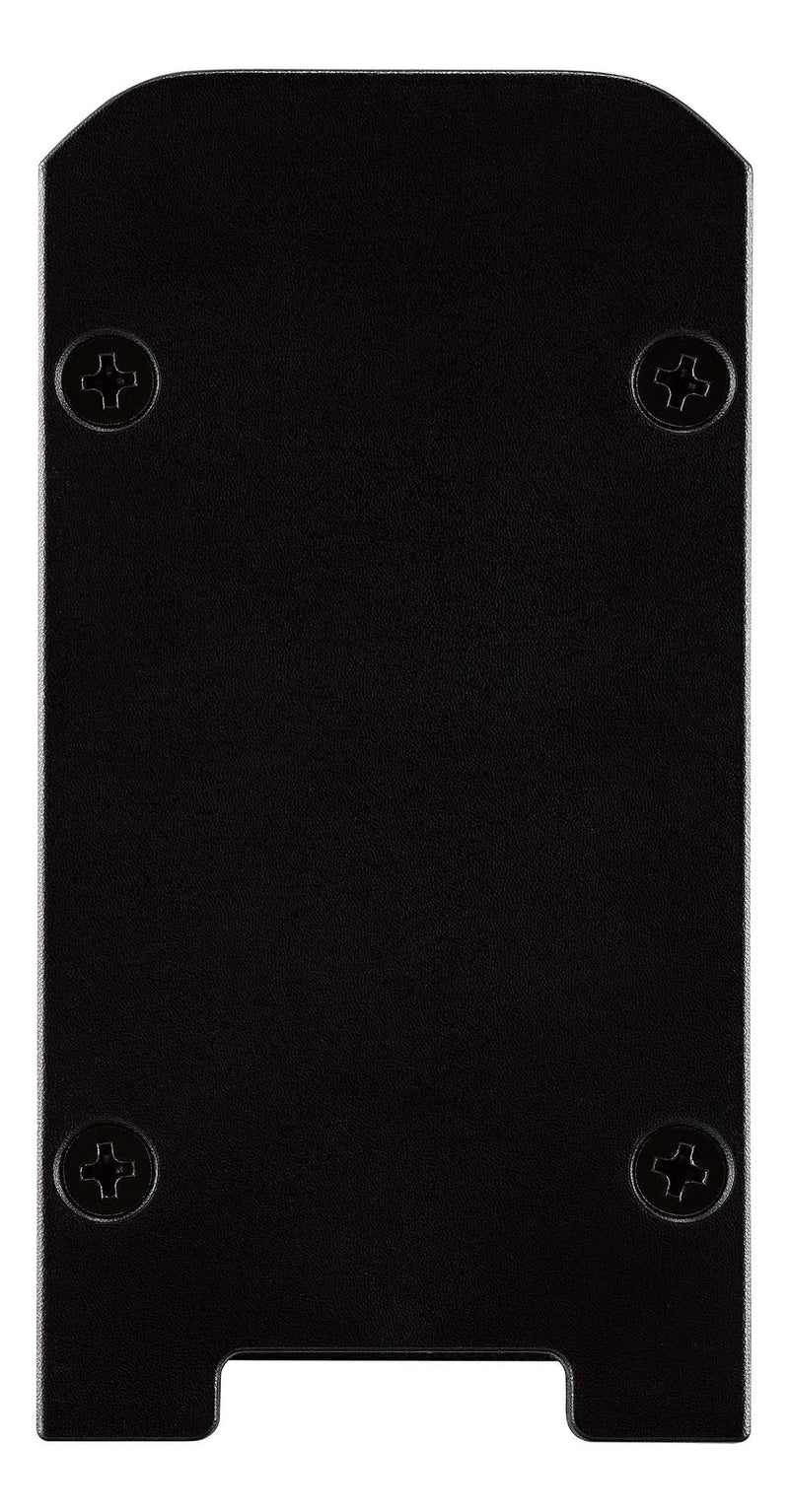

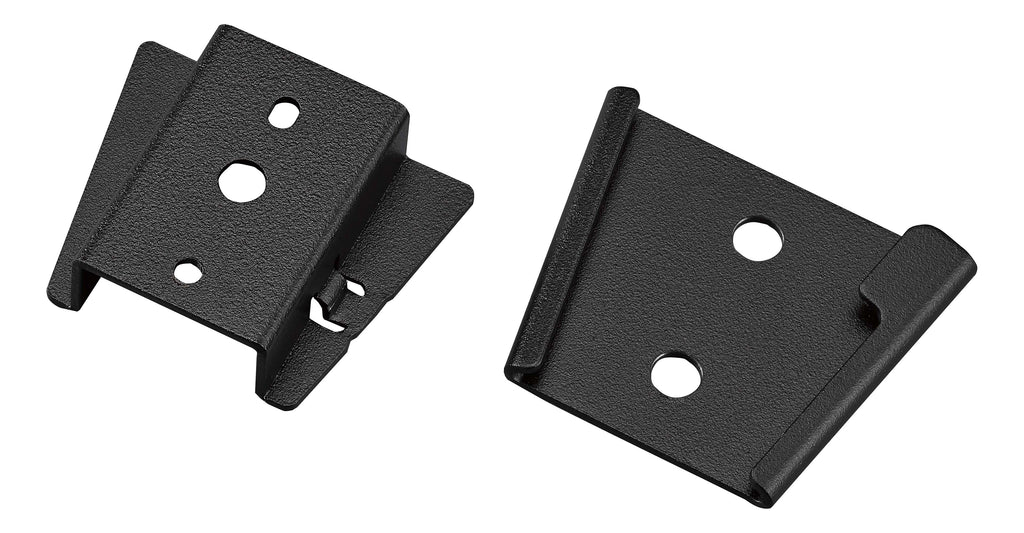

  • Wall mount bracket supplied
  • Includes a wall-mount bracket for easy installation

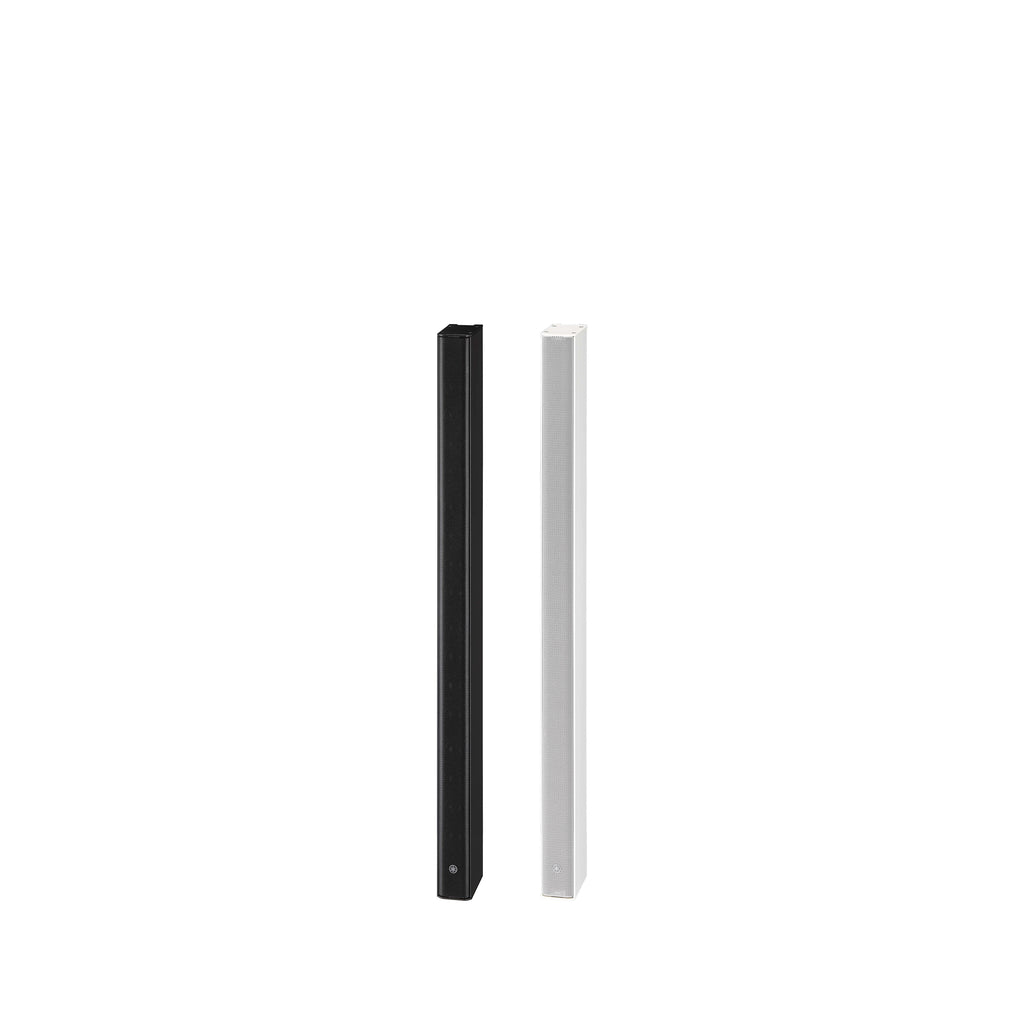

  • Available in black or white

Note: When using an IEEE802.3at-compliant PoE power supply device, the maximum speaker output is 15 watts; when using an IEEE802.3af-compliant PoE power supply device, the maximum speaker output is 6 watts.

 Technical Specifications



Manufacture Part Number


Product Type

Wall Mount

Speaker Type/Configuration

Full-range, Bass reflex



Frequency Response/Range (-10dB)

81 Hz – 20 kHz *1 108 Hz - 20kHz 1 (w/ port cover)

Coverage Area

Horizontal: 170°

Vertical: 20°( +10° – -10°) (NORMAL), 40°(+10° – -30°) (WIDE)

Speaker Driver Size LF-HF

1.5” (3.75 cm) Cone × 16

Power Rating    NOISE

80 W


160 W


320 W

Nominal Impedance

12 Ohms

SPL  - Sensitivity (1W, 1m on axis)

91 dB SPL (1 m/1 W) *1 *2

           Peak (Calculated)

116 dB SPL (1 m) *3

I/O Connectors

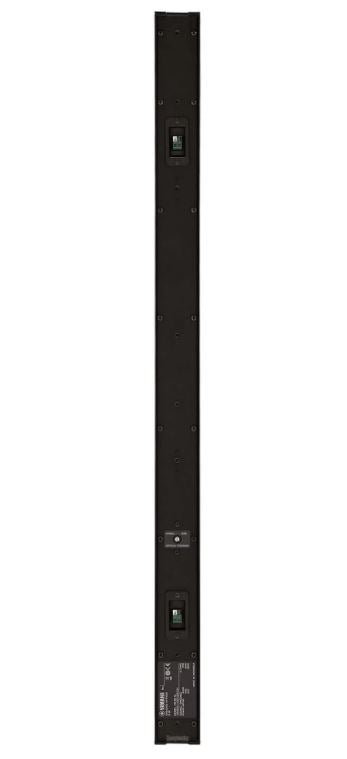

Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)

Protection Circuit  - Load Protection

Full-range power limiting to protecting network and transducers


VXL1B-16: Black painting (approximate value: Munsell N3.0), VXL1W-16: White painting (approximate value: Munsell N9.0)


Dust and water resis tant : IP35



Dimensions  - (W x H x D)

Width –   2.12”

Height – 44.09”

Depth –   4.09”

2.12 x 33.3 x 4.1 in. (54 x 846 x 104 mm) - Speaker Only

2.1 x 33.3 x 4.4 in. (54 x 846 x 111.5 mm) - with Included Bracket


Packaged 1 Unit/Piece

Net Weight

3.9 KGS / 8.6 lbs. (Speaker Only)

Package Weight

11.02 LBS.

Required Ceiling Board Thickness


Mounting Options

Wall Mount, Brackets & Mounting Piece Included



Manufacture Part Number


Country of Manufacture
