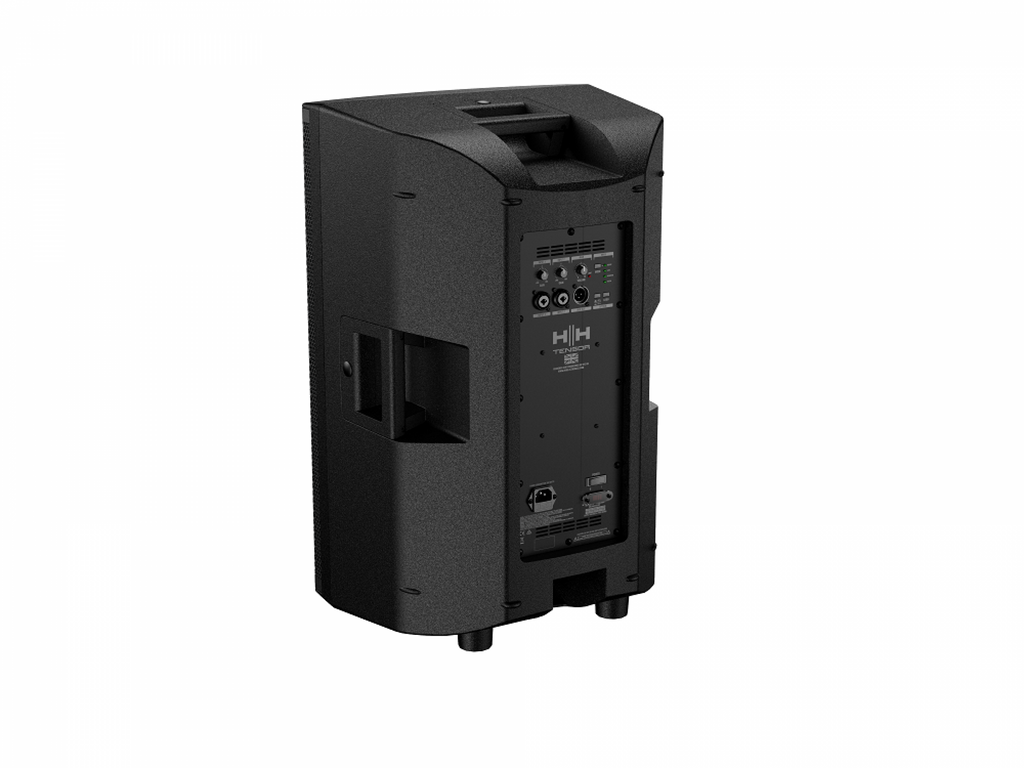

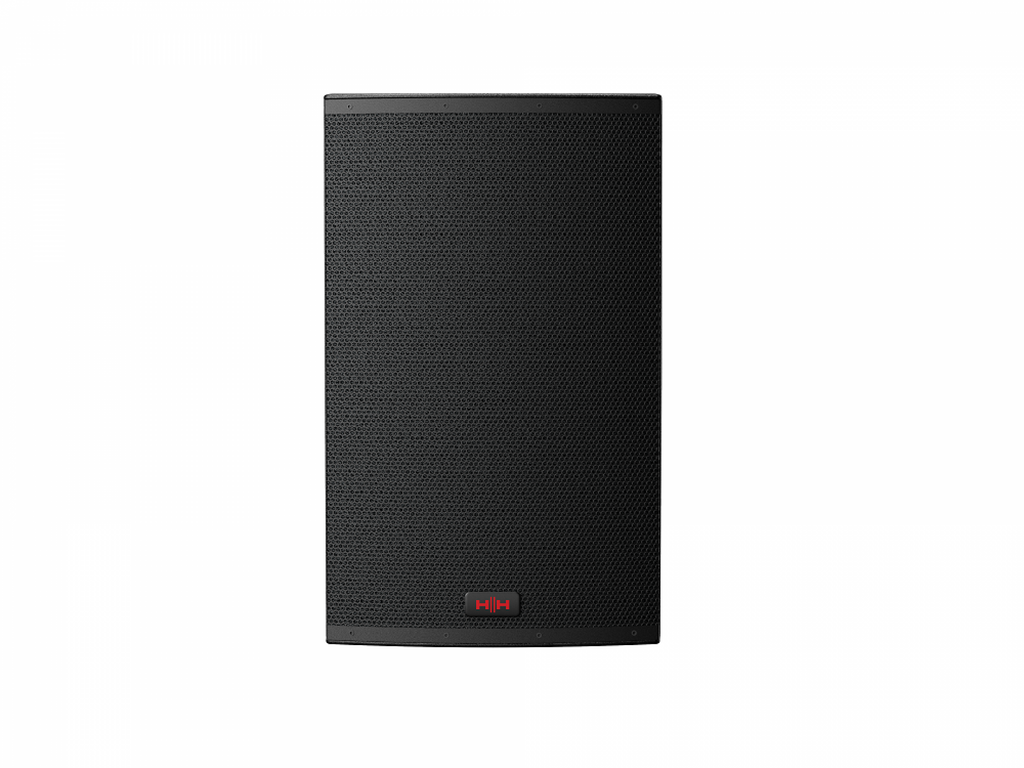

HH Tensor TRE-1501, Class D Bi-Amplifier, 4 Audio mode w/on-board DSP
The Tensor TRE-1501’s design is a high-grade class D bi-amplifier provides output without restrictions and the intelligent on-board DSP protects your system from failure. With it’s 4 audio modes.
The TRE-1501 is customizable to your requirements, whether that’s DJ, live band, monitoring or announcements, the TRE-1501 has you covered with the press of a button. The integrated 2 channel mixer ensures that your devices are connected without constraints. All this contained in an ultra lightweight, multi-angle enclosure that includes 3 molded carry handles and 4 m8 suspension points. The HH tensor TRE-1501 – delivering performance and reliability.
Manufacture detailed specifications: https://www.hhelectronics.com/products/tensor-tre-1501-active-full-range-enclosure
Technical Specifications
| Power | 1400W Peak |
|---|---|
| Frequency Response | 41 - 20kHz |
| Max SPL (1M) (Peak) | 131dB |
| LF Driver | 15 Inch HH designed professional low mid driver featuring imported glass reinforced cone |
| HF Driver | 1.33 Inch Compression Driver |
| Coverage | 90°H x 60°V |
| Crossover Frequency | 2.5kHz |
| Inputs | 2 x Balanced Combi XLR/1/4" Jack connectors |
| Outputs | 1 x Balanced XLR Mix Output |
| Indicators | Power, Clip Indicator, EQ Mode, Front illuminated logo |
| Eq | User selectable performance presets for Music, Live, Monitor, Vocal |
| DSP | Crossover, EQ, Dual Band Limiters, Phase and Time Optimisation |
| Protection | Comprehensive protection and clip free limiting + clip indicator |
|---|---|

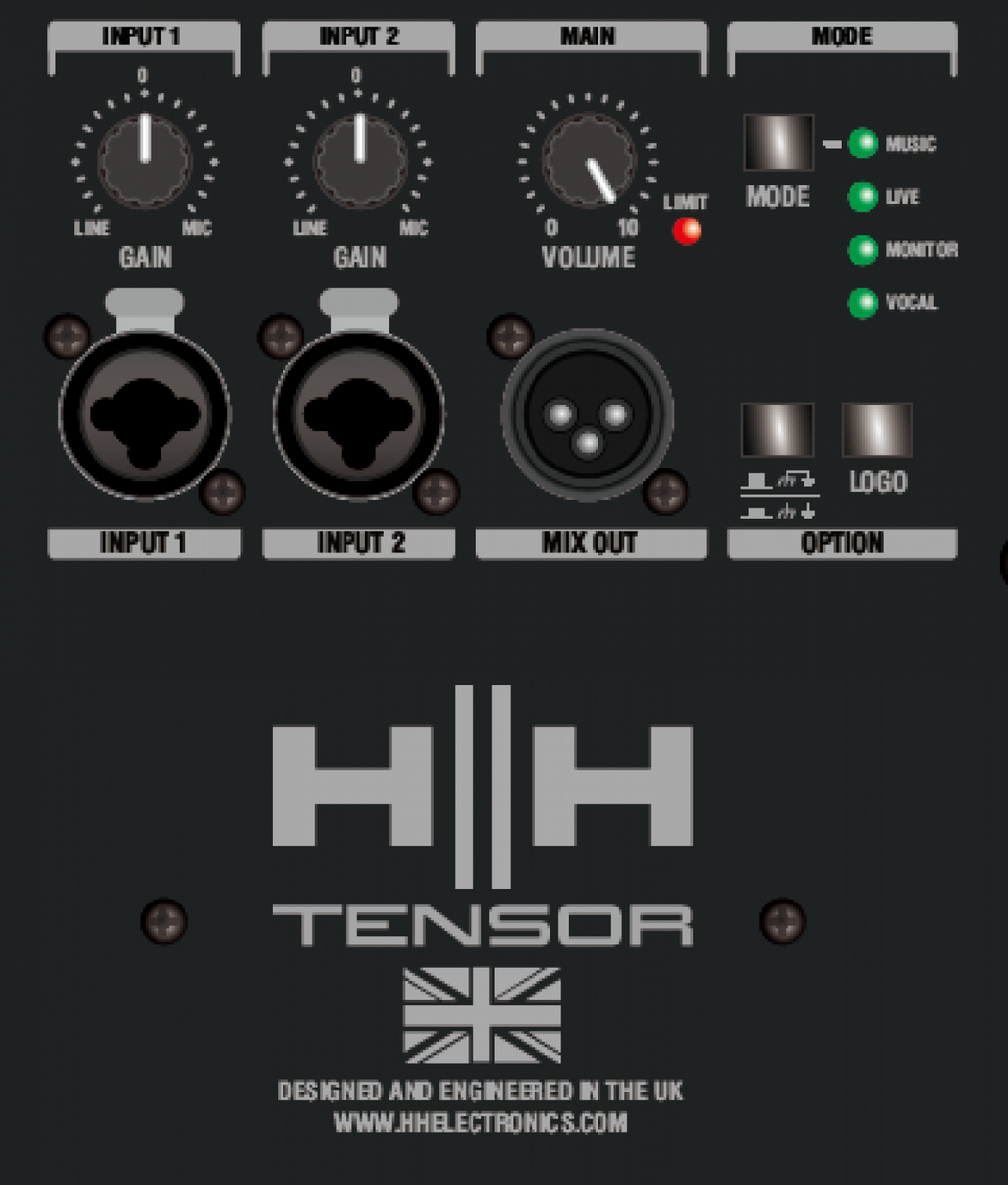

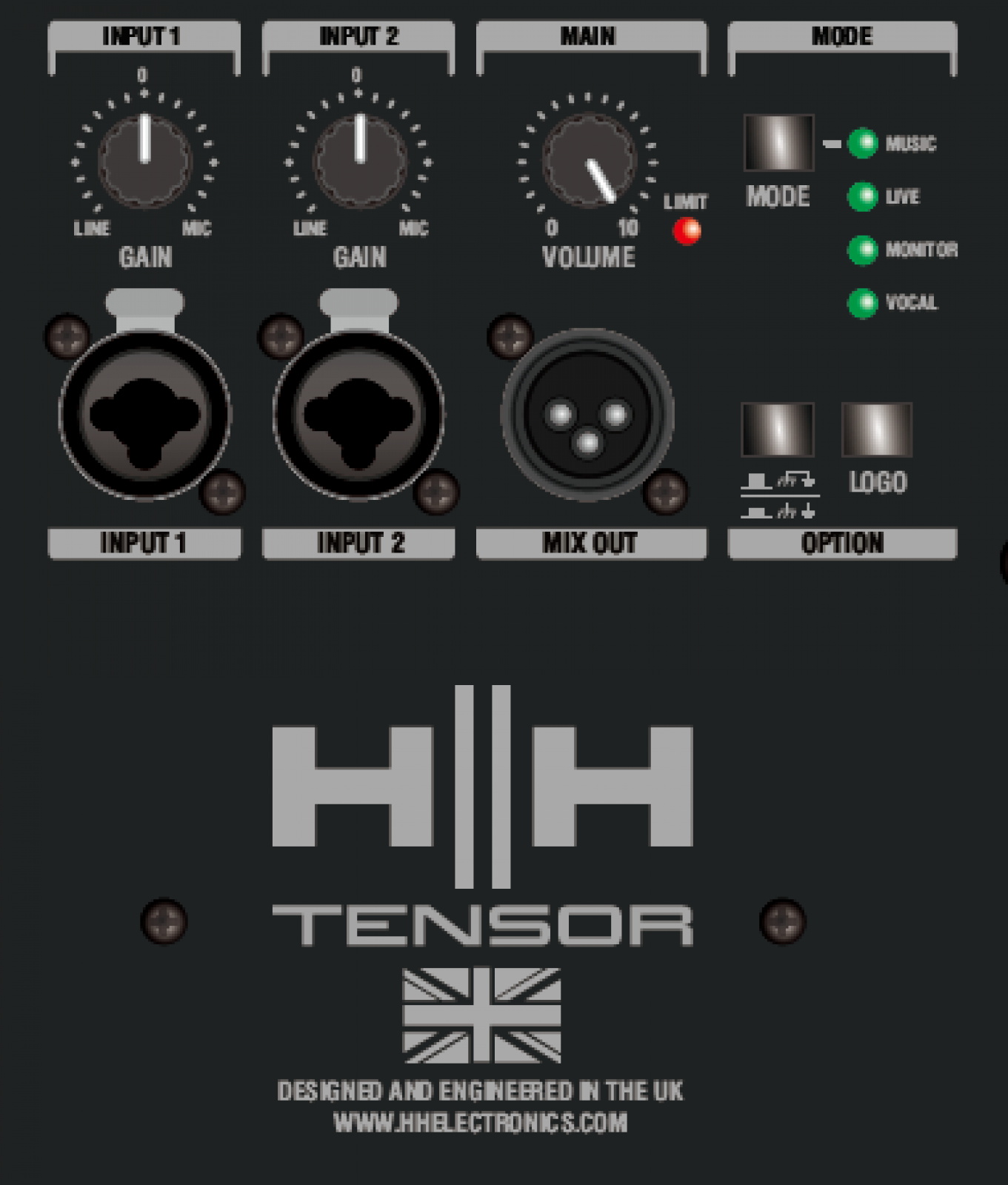

| Controls | 2 x channel gain, Master Volume, logo on/off, Ground Lift, EQ Mode |
| Cabinet | Robust polypropylene cabinet with three handles and 45° monitor angle |
| Finish | Black |
| Grille | Heavy Gauge powder-coated steel, Black with acoustic foam backing |
| Pole Mount | 35mm Distance pole socket |
| Flying Points | 4 x M8 Mounting Points |
| Unit Dimensions (Hwd) | 694 x 420 x 385mm, 27.3" x 16.5" x 15.2" |
| Unit Weight | 18Kg, 39.7 lbs |
| Carton Dimensions (Hwd) | 775 x 500 x 465mm, 30.5" x 19.7" x 18.3" |
| Packed Weight | 21.4Kg, 47.2 lbs |
