Description +-

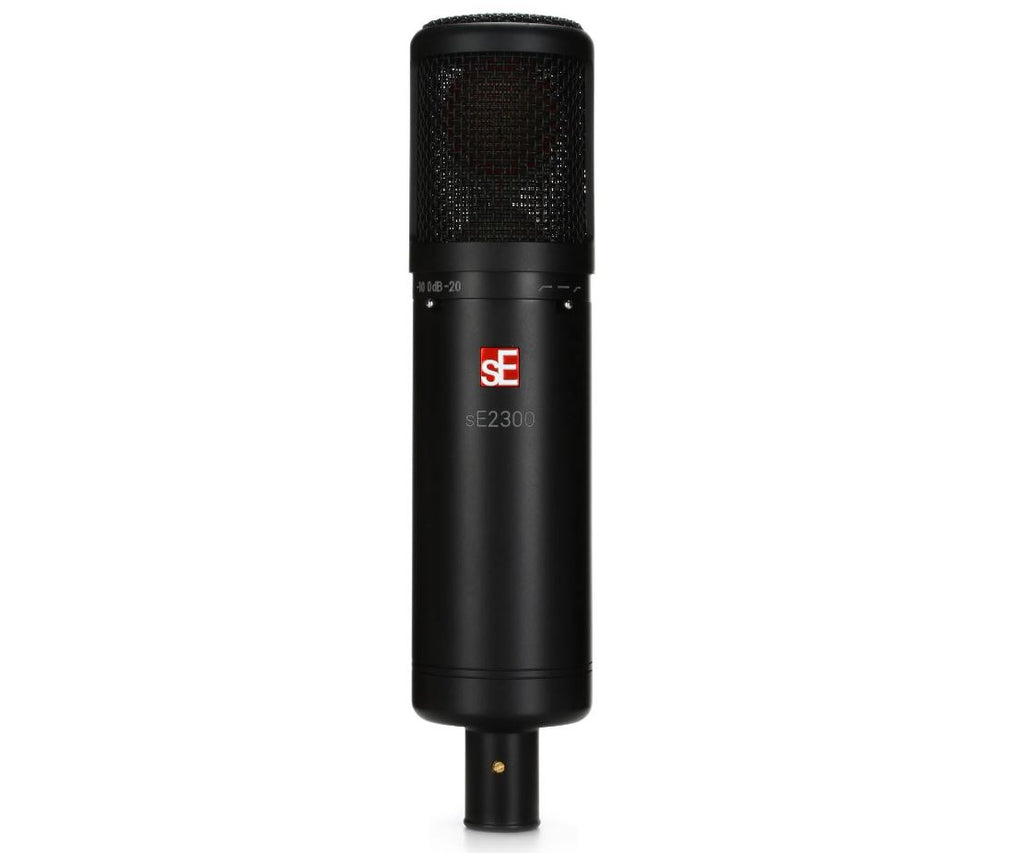

Large-diaphragm Condenser Microphone with Cardioid/Omni/Figure-8 Polar Patterns, 80Hz/160Hz Highpass Filter, and -10dB/-20dB Pad
- SKU: sE2300
-
UPC: 819032011522
Recommended Use
- Recording studio, home studio, Vocals, Acoustic, Guitar, Electric Guitar Cab,
- Orchestral + Strings, Piano, Woodwinds, Brass
sE Electronics sE2300 Microphone Features:
-

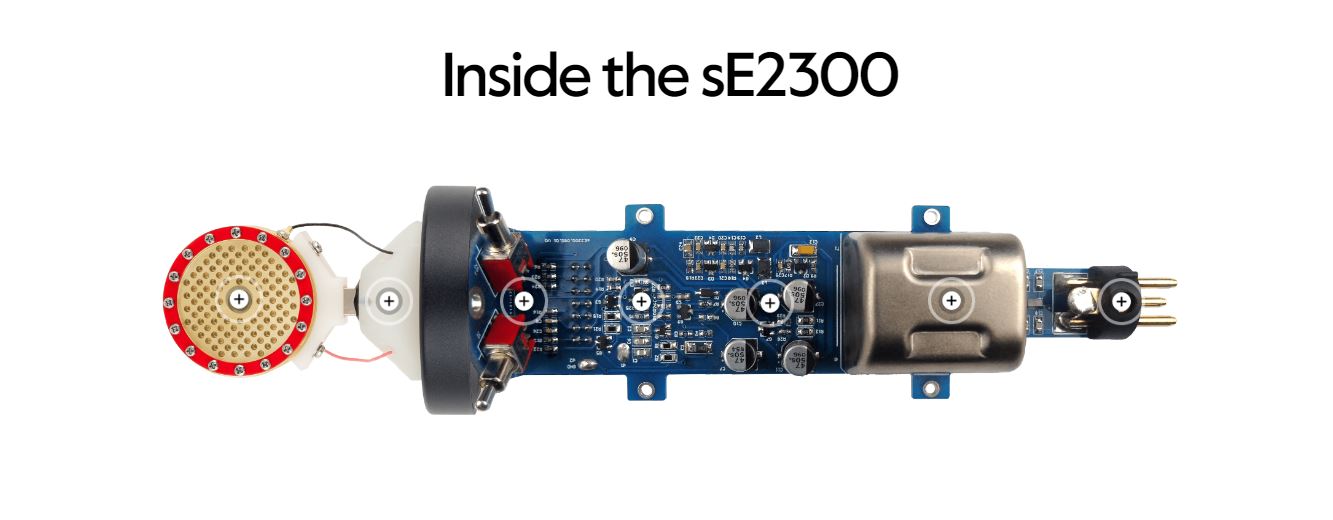

Traditional Class-A electronic design with consistent low-noise performance
-
80 /160 Hz bass-cut filters and -10 / -20 dB pads
-

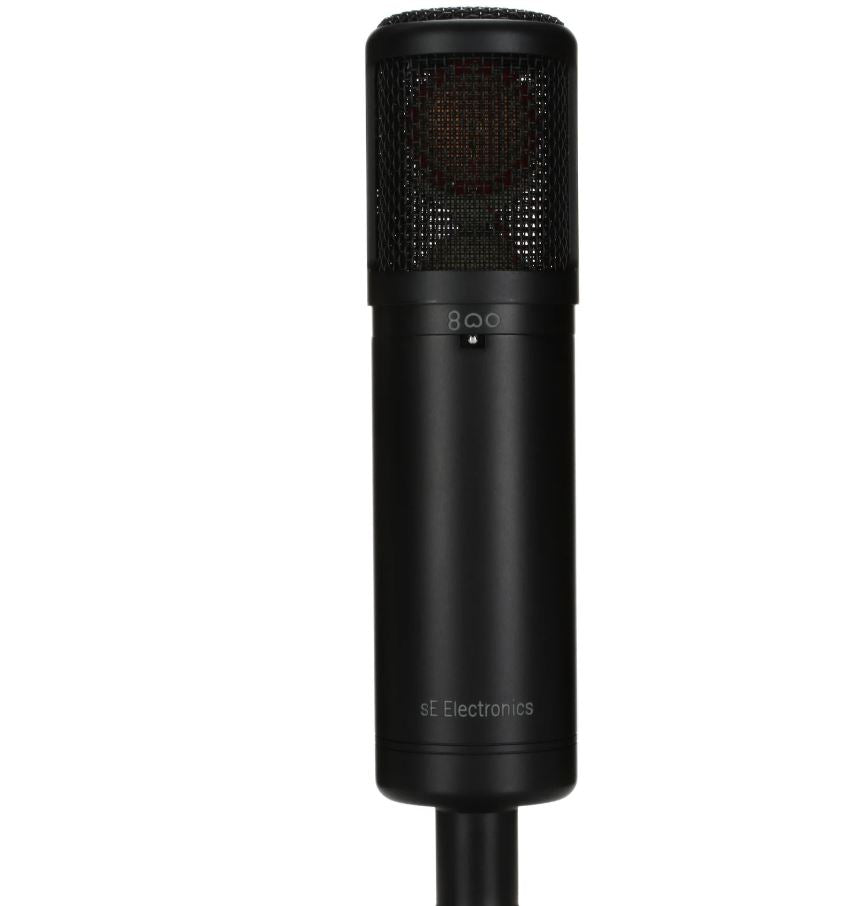

Cardioid, omnidirectional and bi-cardioid selectable polar patterns
- Max SPL (0.5% THD): 126dB/133dB/146dB (0dB/-10dB/-20dB attenuation pad)

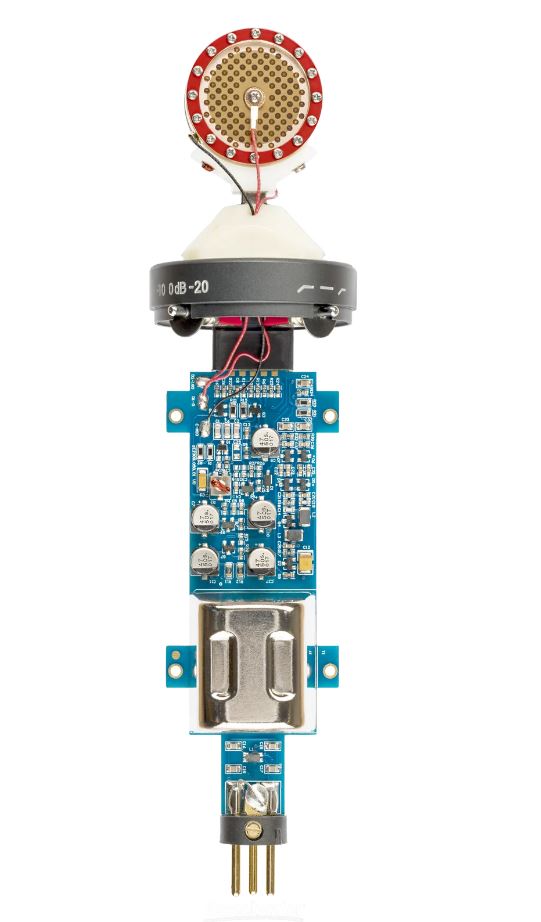

- Hand-crafted 1” true condenser capsule individually tuned in our own factory
- The cardioid, omni, and figure-8 polar patterns make it versatile for a wide range of applications, including vocals, drum overheads, and guitar amps.

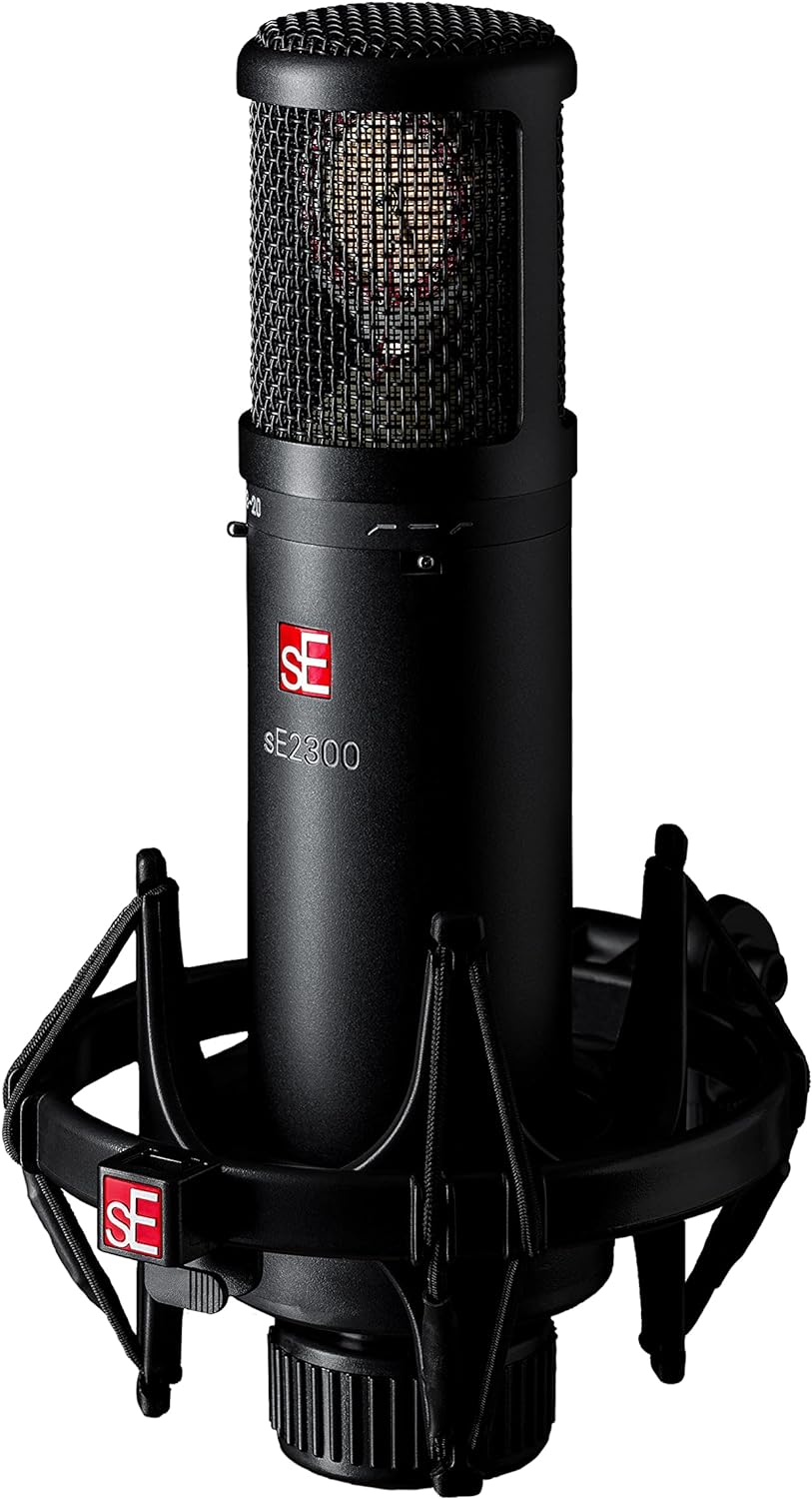

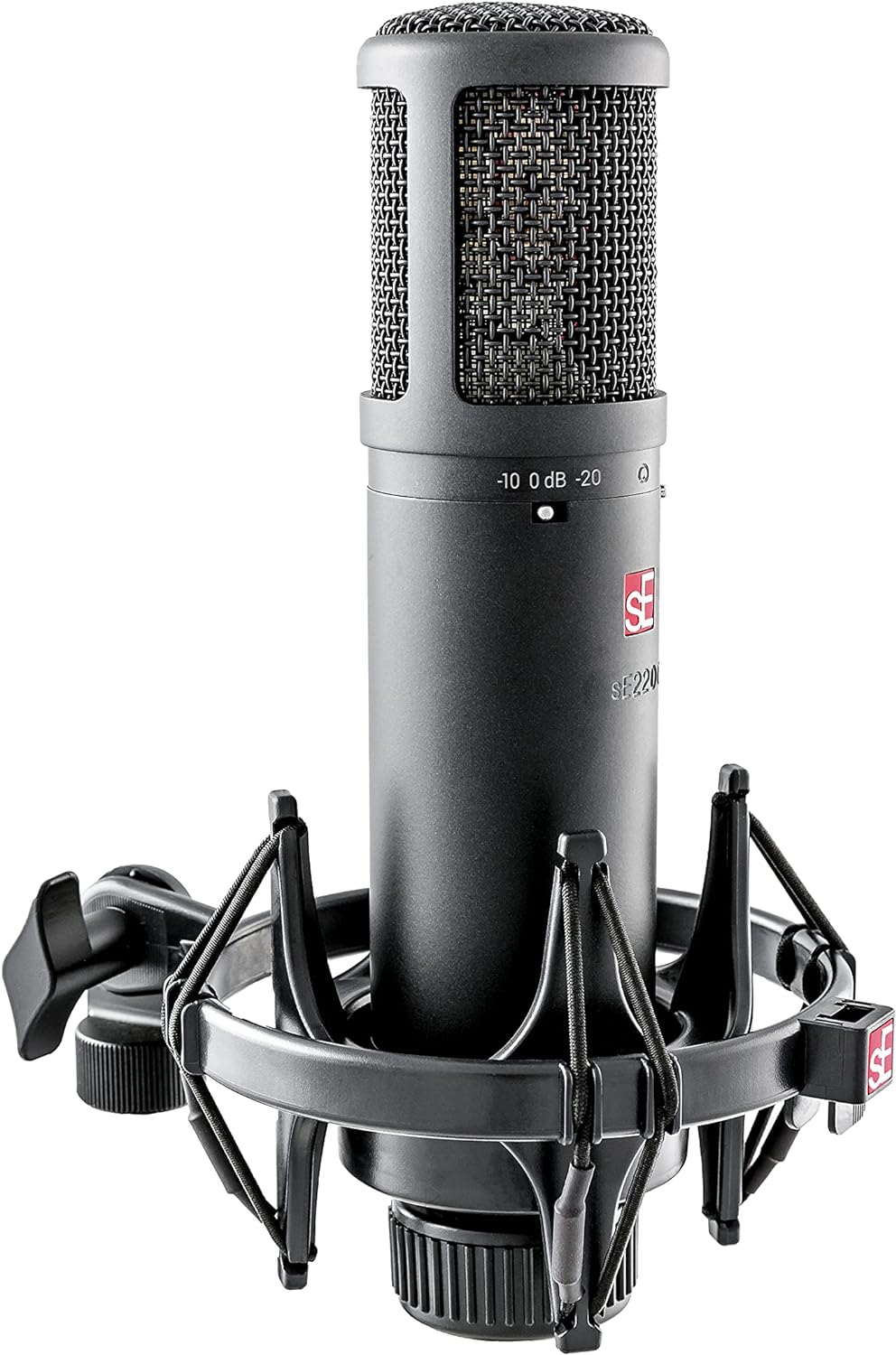

- Shock mount and pop filter are included
- Requires +48-volt phantom power
Low noise and high headroom
The sE Electronics sE2300 is a studio-style condenser microphone that is able to capture highly dynamic sounds with ease. Unlike other mics that may be too noisy or unable to handle high levels of sound, the sE2300 boasts a 146dB maximum SPL with the -20dB pad engaged, while maintaining a low noise floor. This makes it the perfect choice for recording a variety of instruments, from guitar to drums, without compromising on quality.
Technical Specifications
Components
- Capsule Hand-crafted 1" True Condenser
Power
- Electrical impedance40 Ohms
- Recommended load impedance>1k Ohms

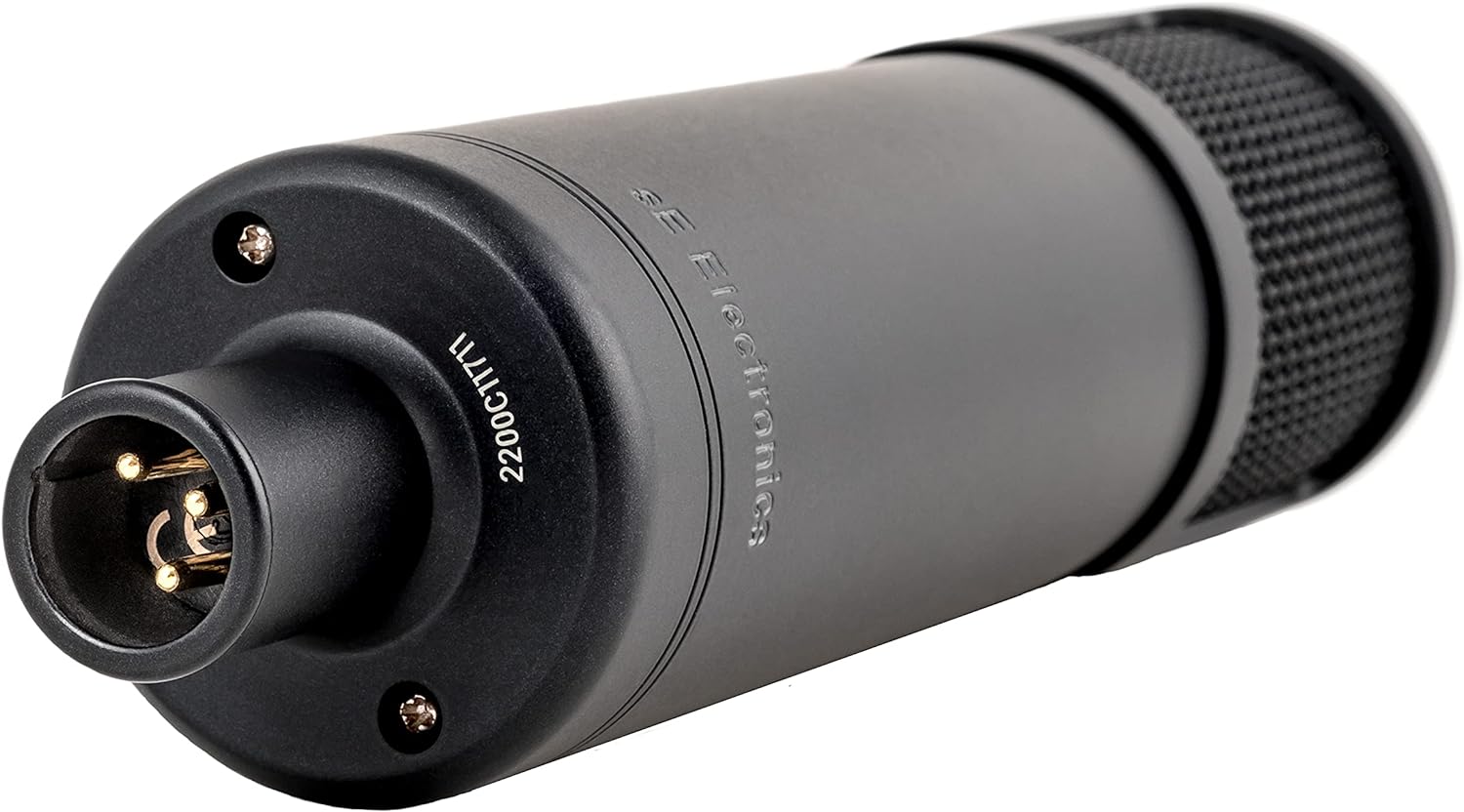

- Connectivity3-pin male XLR connector
- Powering48V Phantom Power (P48 according to IEC 61938)
Sound
- Polar patterns: Cardioid, Omni-directional, Figure-8
- Frequency range20 Hz - 20 kHz
- Sensitivity25 mV / Pa (-32 dBV)
- Max SPL125 / 135 / 145 dB (0 / 10 / 20 dB pad) (0.5% THD @ 1kHz)
- Equivalent noise level9 dB
- Dynamic range117 / 127 / 137 dB (0 / 10 / 20 dB attenuation pad)
- Signal to noise ratio85 dB
- Low-cut filter80 / 160 Hz, 6 dB / Oct, switchable
- Attenuation pad10 / 20 dB, switchable
- Current consumption4.8 mA
Dimensions
- Mic Diameter51 mm (2.01 in.)
- Mic length215 mm (8.46 in.)
- Mic weight215 mm (8.46 in.
What's in the Box
- sE2300 Studio Condenser Microphone
- Isolation Pack (shock mount, pop filter)
- Thread adapter
- sE Logo sticker
- User manual with warranty card
Product Manufacture Info
- Manufacturer/Brand: SE Electronics
- SKU: sE2300
- UPC: 819032011522
-
Product Packed Dimensions: 7.99 x 2.01 x 2.01 inches
- Product Packed Weight: 3.10 lbs 1.40 kg
- Product Dimensions:
- Product Weight: 1.32 lbs
-
Country of Manufacture: China
- Country of Design: Netherlands
