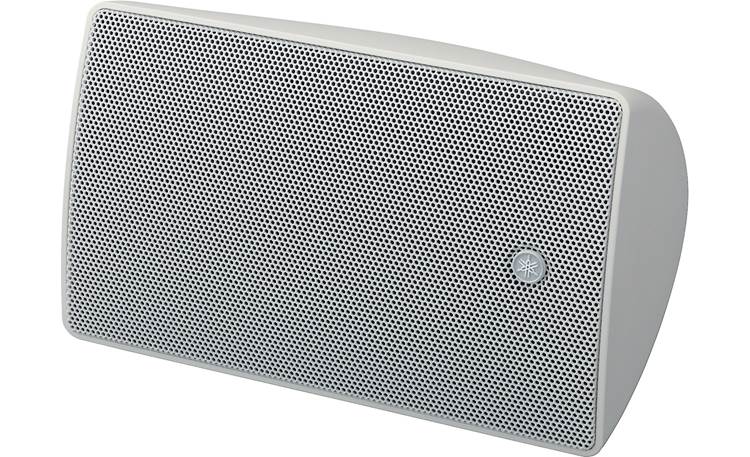

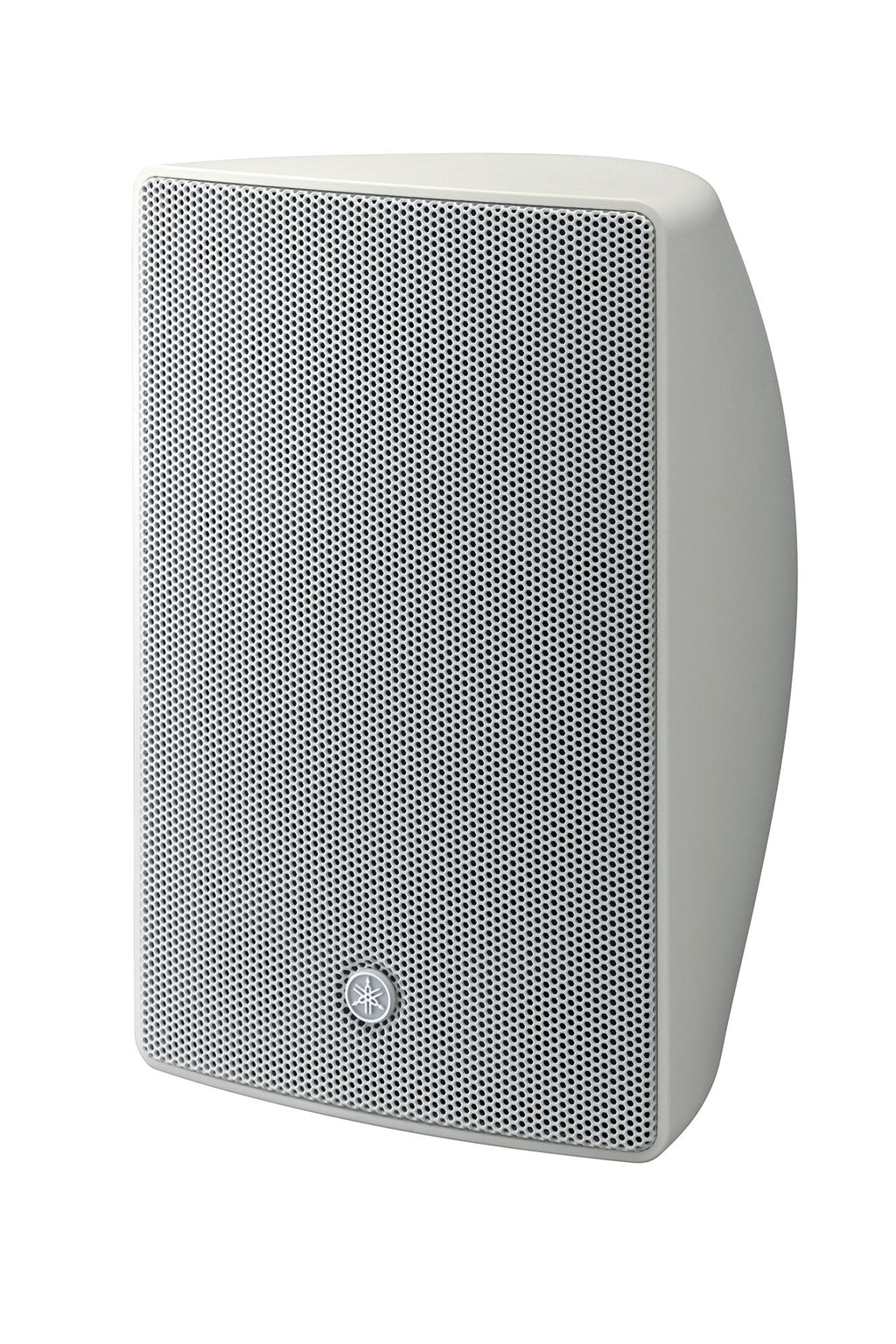

Yamaha VXS5, Commercial Surface Mount 5 1/4" Speaker, White, Water Resistant


Price:
Sale priceTk 38,000

Description

Yamaha VXS5, Commercial Surface Mount 5 1/4"  Speaker, White Water Resistant

2-way, 5.25" woofer with 0.75 tweeter. 150W program at 8Ω. 30/15/7.5/3.8W 70V taps. White Finish.

Full-range sound from an on-wall speaker

Yamaha VXS speakers provide background music and live paging for small businesses, and they're designed to fit into your decor. Each provides a 5-1/4" woofer and 3/4" soft dome tweeter for wide coverage and exceptional voice clarity. These speakers feature multi-tap transformers for use with 70-volt or 100-volt audio systems, while an 8-ohm bypass setting allows use with regular home audio receivers and amps.

Yamaha VSX5 Speaker Key Features

  • On-wall speaker with 5-1/4" woofer and 3/4" soft dome tweeter in a bass-reflex enclosure
  • 120° conical coverage angle
  • 70V taps: 3.8W, 7.5W, 15W, 30W
  • 150W program at 8 ohms; 80-20,000 Hz
  • Frequency response: 62-20,000 Hz (-10 dB)
  • Maximum SPL: 114 dB
  • Sensitivity: 89 dB
  • Multi-tap transformer for 70V or 100V systems
    • 30, 15, 7.5 and 3.8-watt taps
    • 8-ohm bypass setting for use with regular home audio receivers and amps

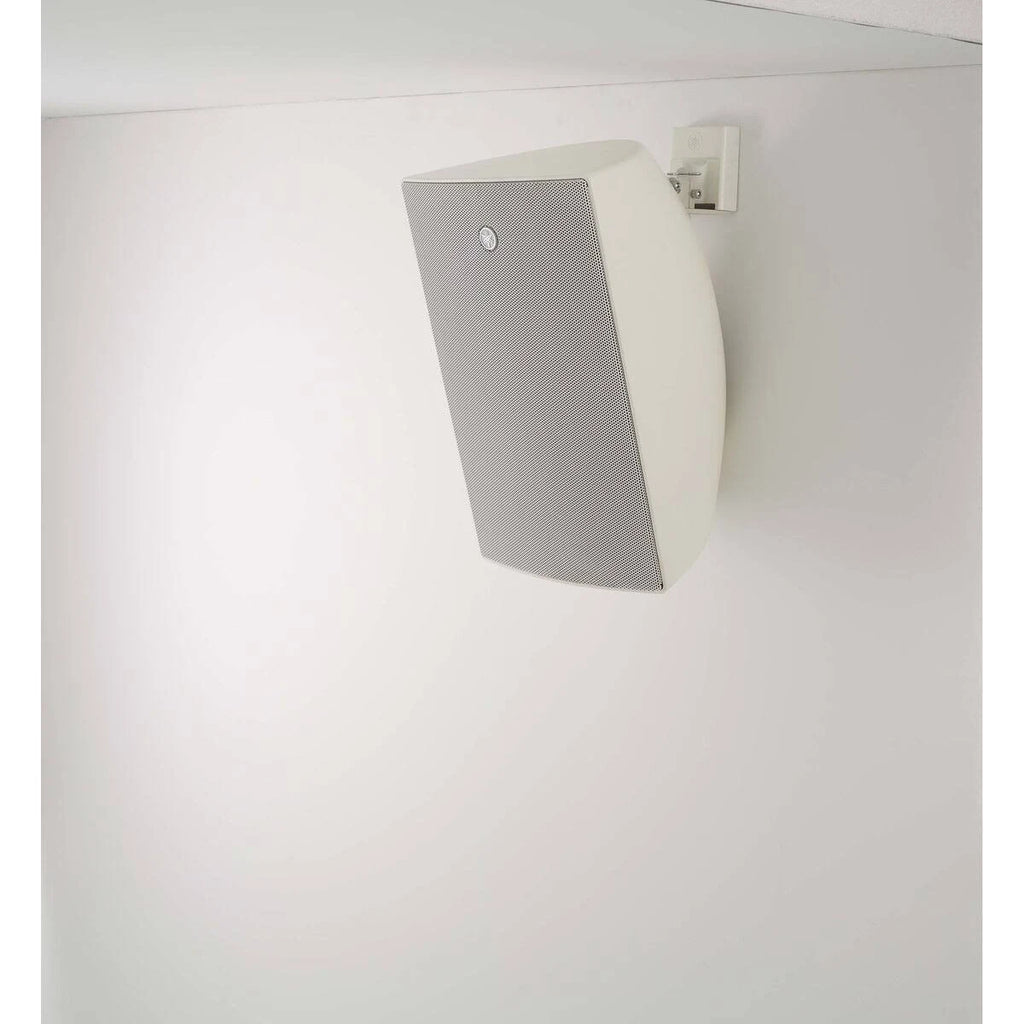

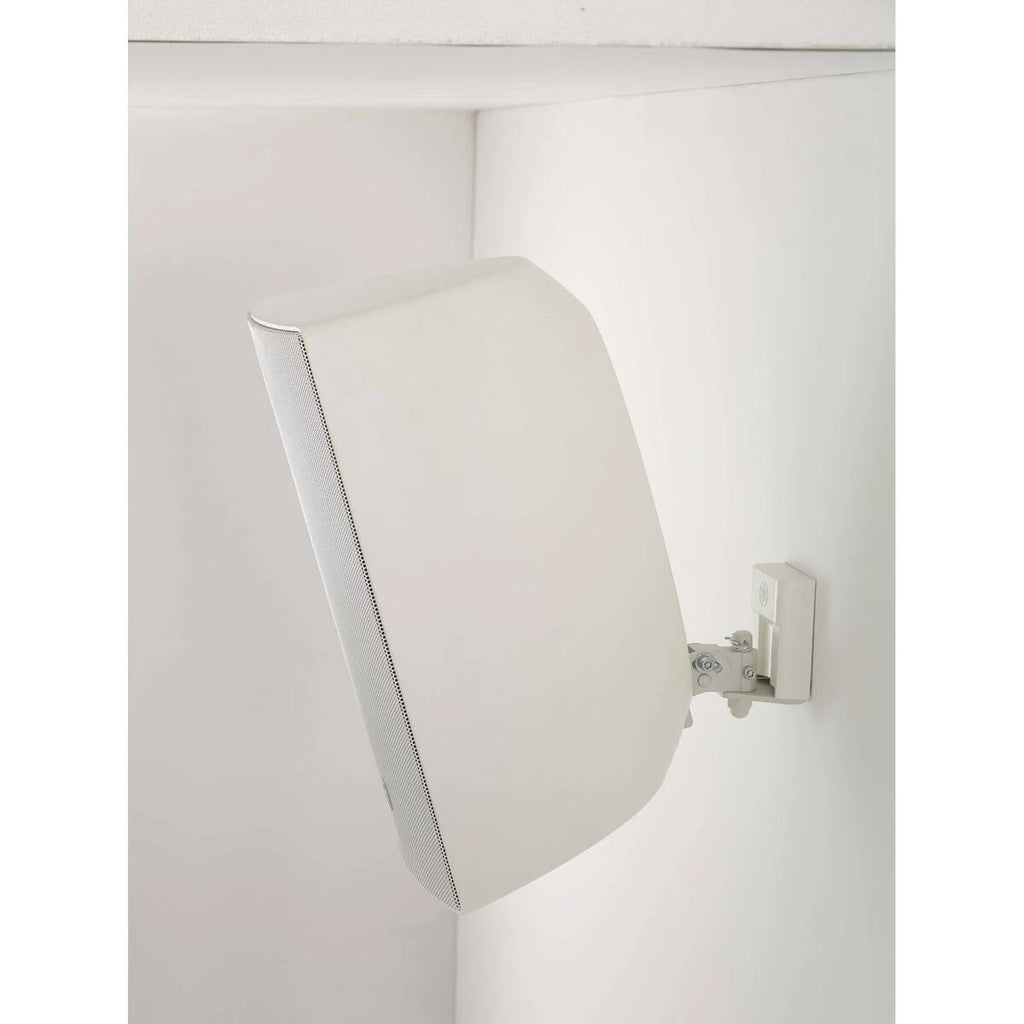

  • Wall mounting hardware included
  • Paintable powder-coated aluminum grille
  • 6-15/16"W x 11"H x 6-7/16"D
  • Weight: 7.9 lbs.
  • Warranty: 1 year

What's in a Box

  •  Surface-mount loudspeakers
  • 2 Grilles (pre-installed)
  • 2 Speaker brackets
  • 2 Wall brackets
  • 2 Bracket covers
  • 2 Terminal covers
  • Owner's Manual
  • 4 Phillips-head screws (lock-/flat-washers attached)
  • 2 Hex-head screws (lock-/flat-washers attached)
  • 2 Security cables (with hardware)
  • Hex-key
  • 2 Carter-keys

Technical Specifications

MANUFACTURER

Yamaha

Manufacture Part Number

VXS5W

Product Type

2-way, Bass-reflex

Speaker Type/Configuration

Wall Mount, Surface Mount

Colour

WHITE

Date First Available

October 14, 2013

Frequency Response/Range (-10dB)

62Hz - 20kHz

Nominal Coverage Area H

120°

                                            V

120°

Speaker Driver Size         LF

5.25" Cone

Speaker Driver Size         HF

0.75" Soft dome

Crossover

3kHz

Power Rating    NOISE

75W

                            PGM

150W

                            PEAK



Nominal Impedance

Protection Circuit  Load Protection

 -

Transformer   100V

30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)

                           70V

30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)

SPL  - Sensitivity (1W, 1m on axis)

89dB SPL

           Peak (Calculated)

114dB SPL

I/O Connectors

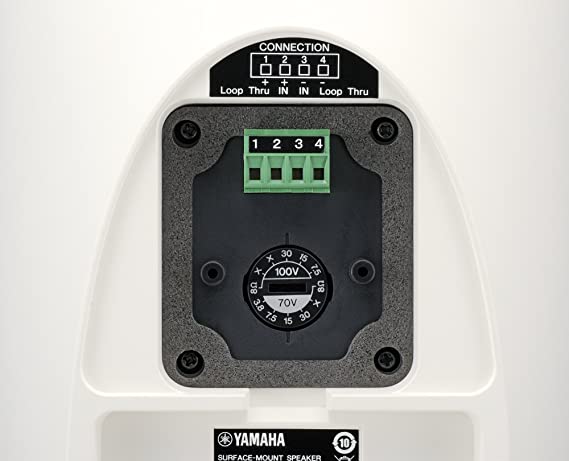

1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)

Shape

Rectangular

Cabinet Material

ABS

Waterproof

IP35

Finish

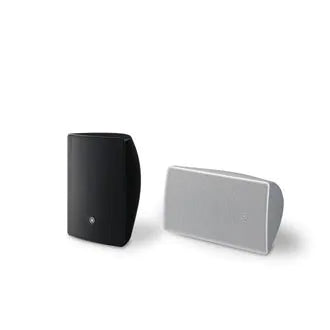

VXS5:Black / VXS5W:White

Accessories

Wall / Ceiling mount bracket, Terminal cover

Certificate

UL1480, NFPA70, CE, EAC, RoHS

PRODUCT SHIPPING INFO



Dimensions  -  W

176mm (6.9")

                           H

280mm (11.0")

                           D

163mm (6.4")

Packaging

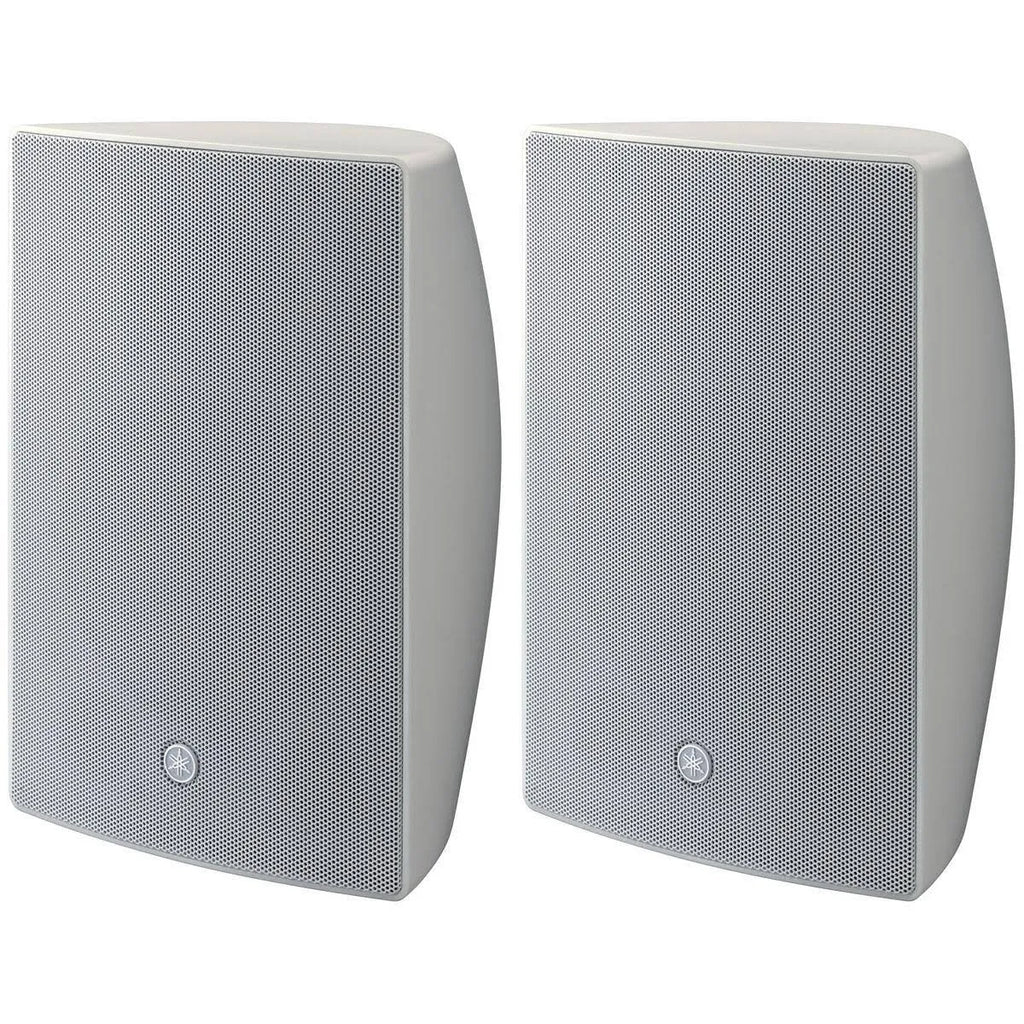

Packaged in pairs

Net Weight

3.6kg (7.9lbs)

Package Weight

20.40 LBS

ASIN

B011CZT3ZO

Manufacture Part Number

 WXS5W

Compatible Devices

VSX10ST

Country of Manufacture

Indonesia
