Yamaha STAGEPAS 400BT Portable PA System with Bluetooth


Price:
Sale priceTk 75,000

Shipping calculated at checkout

Description

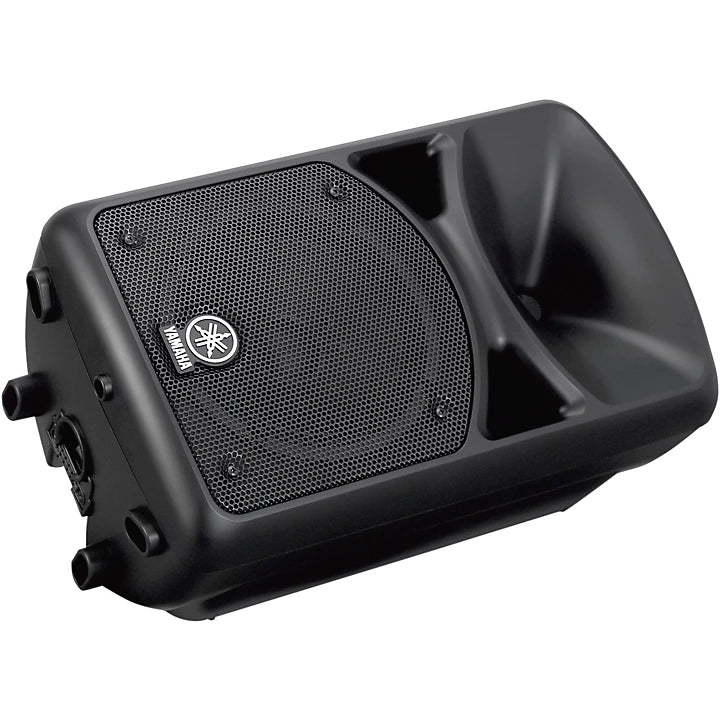

Yamaha STAGEPAS 400BT Portable PA System with Bluetooth

400W Portable PA with Reverb-equipped 8-channel Mixer, Two speakers with 8" LF/1" HF drivers, and Built-in Stand Mounts.

Easily carry and set up your entire system in second at virtually any location.

Key Features

  • 400W (200W + 200W) power output

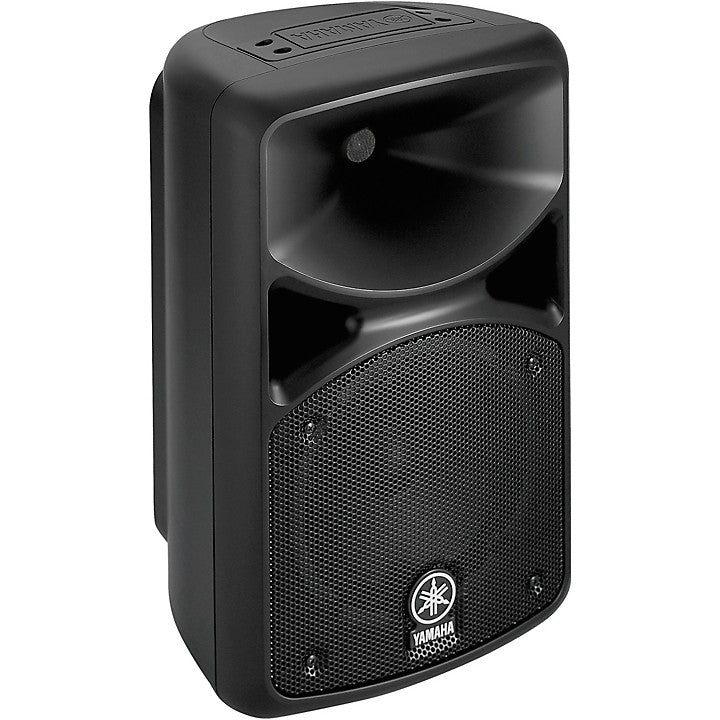

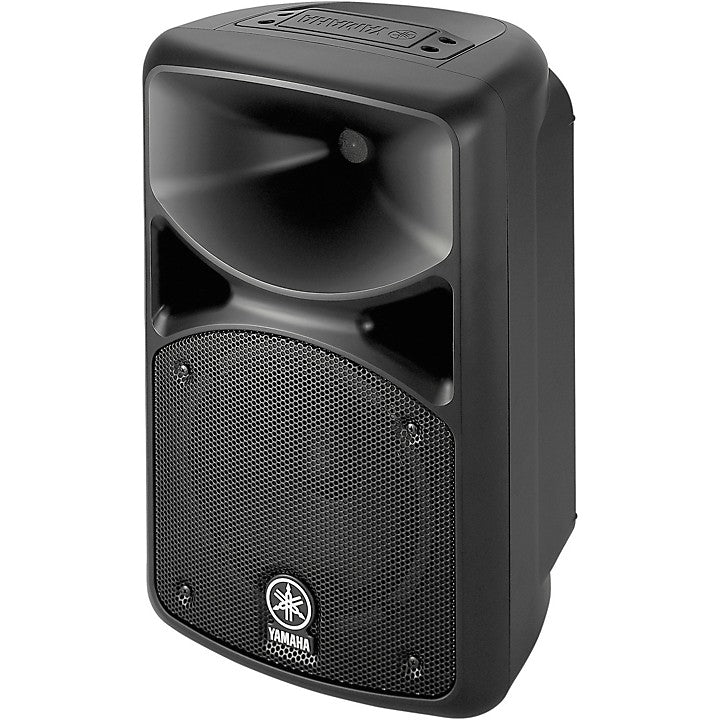

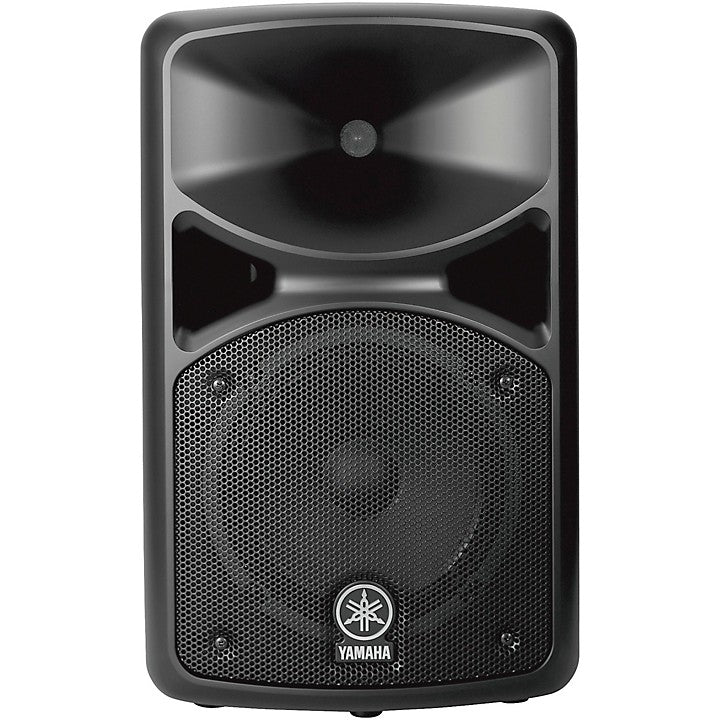

  • High quality speakers (LF:8" woofer/ HF:1" voice coil compression driver)

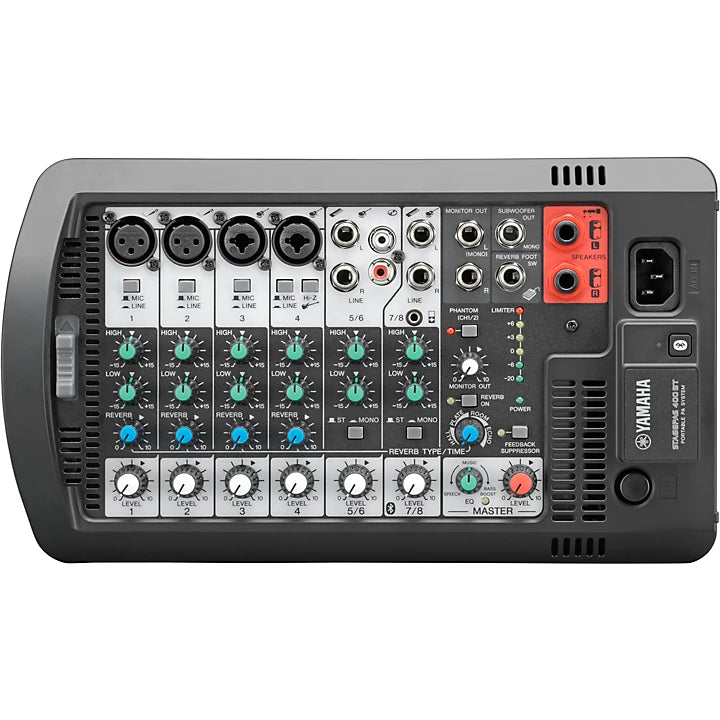

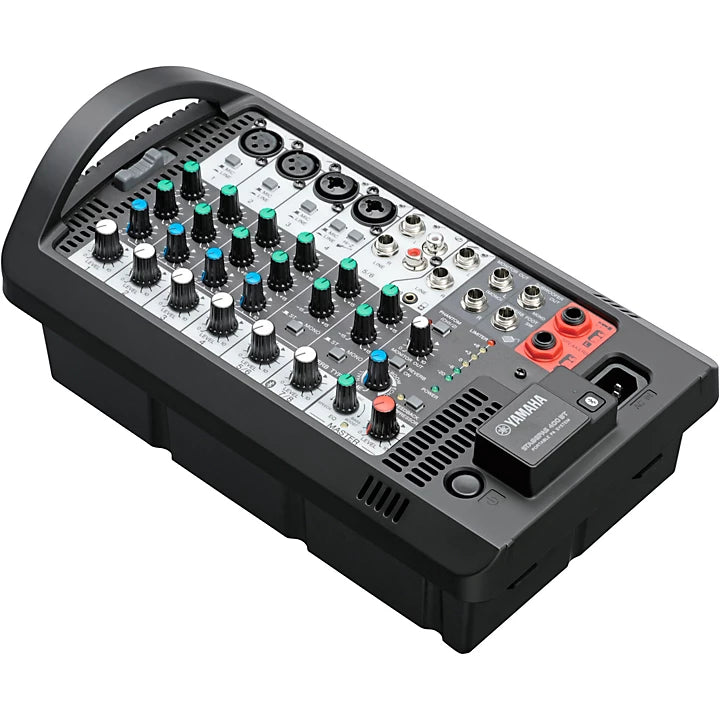

  • Detachable 8-channel mixer (4 mono/line + 4 mono / 2 stereo line)
  • Bluetooth audio streaming
  • 1-Knob Master EQ™ with virtual bass boost
  • High resolution SPX digital reverbs (4 types, parameter control)
  • Onboard feedback suppressor
  • Great-sounding 2-band channel EQ
  • Switchable stereo/ mono inputs
  • Hi-Z (high impedance) inputs
  • Phantom power
  • Monitor and Subwoofer outputs
  • Optional reverb footswitch

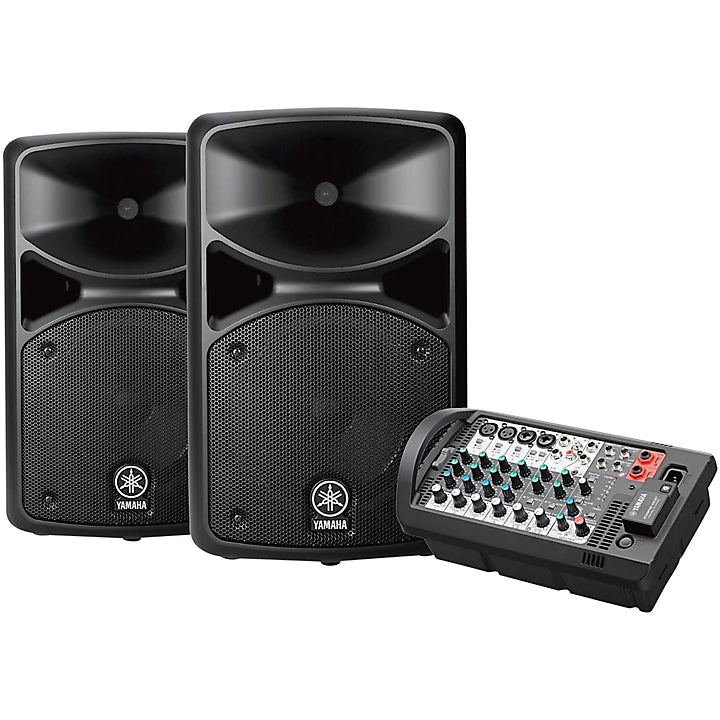

The Ultimate All-in-One Portable PA System

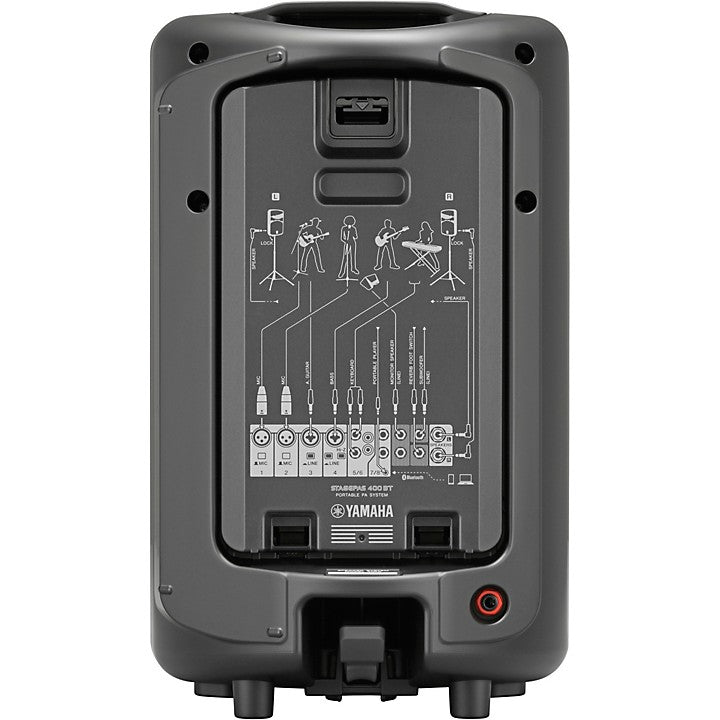

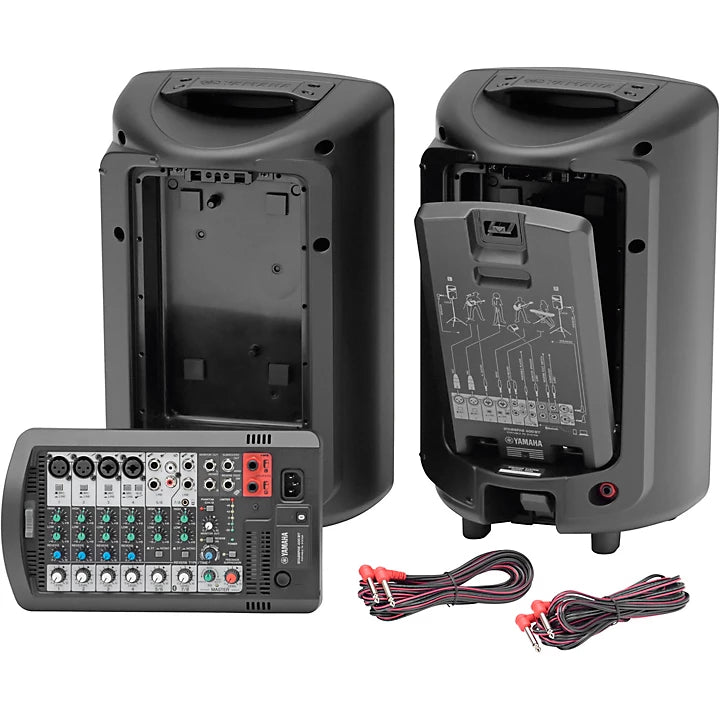

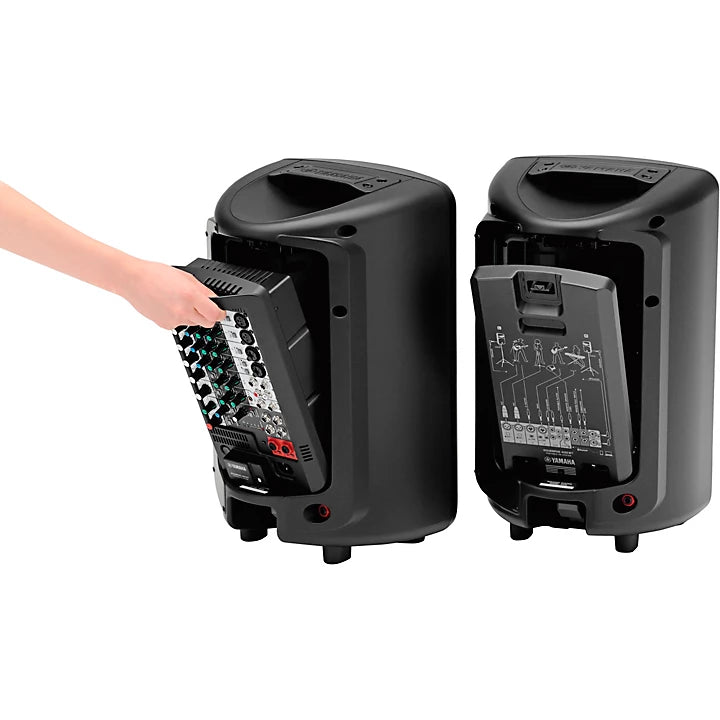

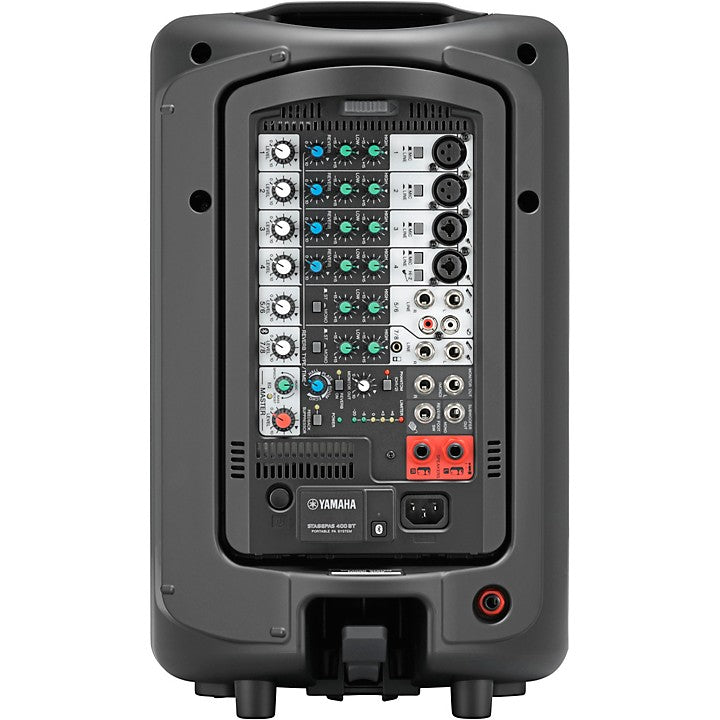

You can take literally anywhere the all-in-one PA system STAGEPAS which is compact and light enough to carry by hand. The two lightweight speakers and a detachable mixer, along with one pair of speaker cables and a power cord, combine into an attractive, compact package that provides the kind of portability that no roadie would ever dare to dream of.

Fast & easy Set-Up

With its intuitive, simple design, STAGEPAS can be set up and ready to go in a matter of seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute.

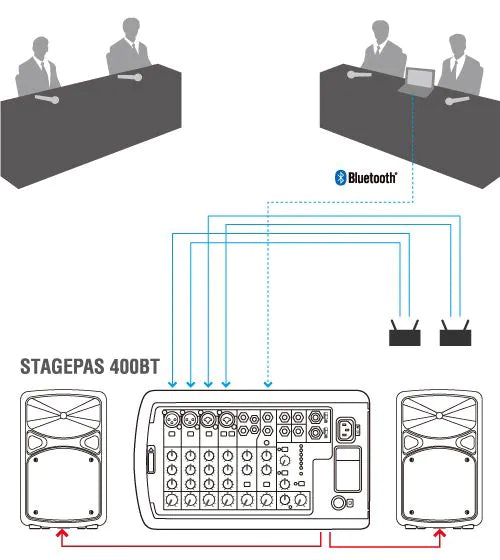

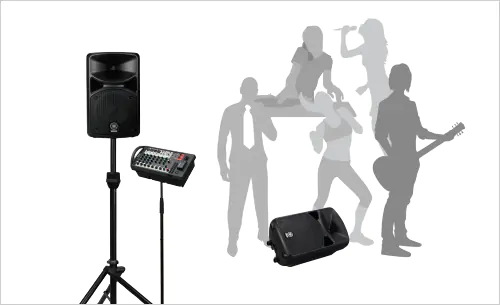

A PA for Any Occasion

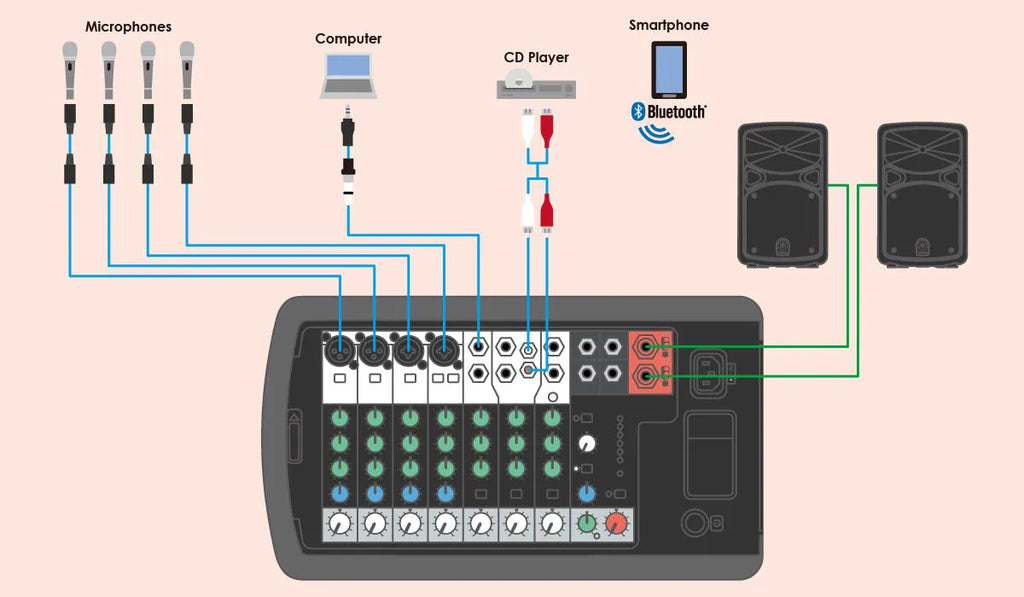

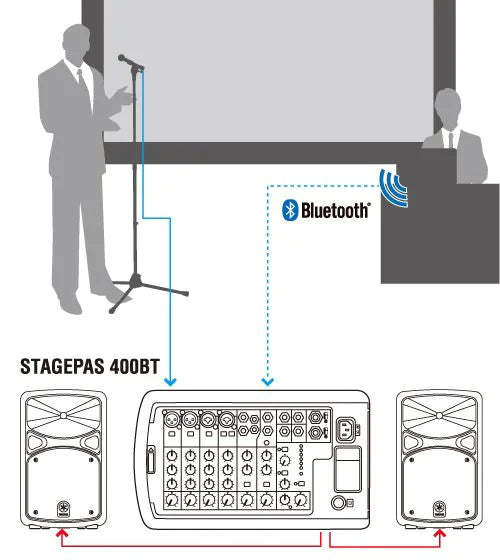

Flexible enough to be used in a truly impressive range of environments and applications, STAGEPAS systems can be set up in a variety of PA and monitoring configurations.

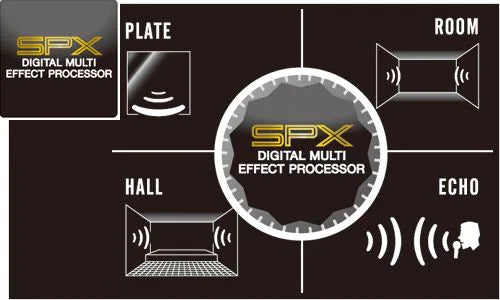

SPX digital reverb

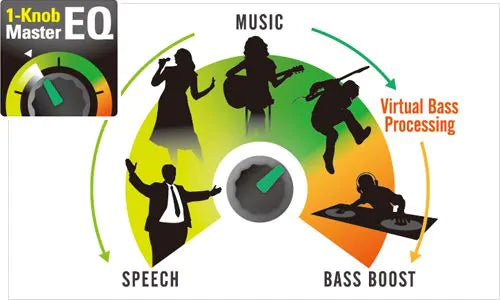

1-Knob Master EQ™

This new function gives you instant mastery of your mix, allowing you to match your sound to your surroundings. Simply turn the knob to optimize the EQ for speaking engagements, musical performances, or just to kick in more bass; getting your sound right has never been so easy.

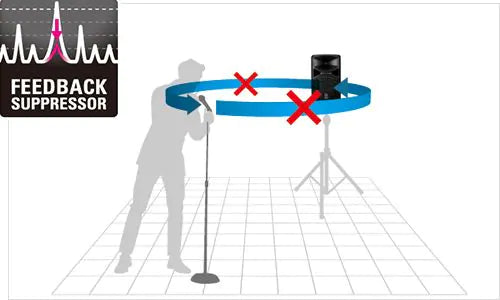

Feedback suppressor

Avoid the uncomfortable feedback that plagues so many sound reinforcement novices and professionals alike. Usually found only on high-end gear, this intelligent function removes feedback automatically with the push of a button, giving you a clear, professional sound.

Channel EQ

Assign detailed EQ settings to each channel for precise management of your final sound. Great sounding 2-band EQ on the STAGEPAS 400BT and more flexible 3-band EQ on the 600BT make setup easy and precise. Vocal and guitar performances especially will benefit from newly added mid-range control on 600BT.

Hi-Z switch

Connect acoustic-electric guitars and basses to enjoy high-quality performance with low distortion. Passive pickup instruments can be connected hassle-free, without a direct box.

Switchable stereo/mono inputs

A versatile new feature that allows you to transform each stereo channel input into two independent mono inputs, giving you the flexibility to adapt to the needs of a broad range of performance requirements.

Phantom power

Connect condenser microphones directly to STAGEPAS to get the best sound quality possible. Phantom power also means you won't have to worry about DI boxes losing their charge during a performance.

Reverb footswitch

For hands-free control of your reverb, connecting an optional footswitch allows you to turn the reverb on and off instantly—perfect for MC-ing events or speaking during solo performances.

Monitor out

Expand your front-of-house system or set up a monitoring system by using the STAGEPAS together with other powered speakers such as Yamaha's DBR, DXR and DSR powered speaker lines.

Add more bottom end to your system by connecting a powered subwoofer such as the Yamaha DXS Series. Simply plugging in a subwoofer will assign a high-pass filter to the STAGEPAS speakers automatically.

Intelligent DSP for peak performance that lasts

STAGEPAS utilizes digital signal processing (DSP) to consistently produce high-quality, distortionfree sound at any volume level, whether you’re giving a business presentation or cutting loose in a club. What’s more, Yamaha’s intelligent DSP incorporates the use of advanced limiter circuits to protect vital STAGEPAS components, ensuring that you get the most out of your gear for years to come.

Same sonic experience throughout a wider coverage area

For use in larger spaces with a sizable audience, STAGEPAS is capable of delivering consistent high-quality sound throughout a greater coverage area than ever before with custom-designed speaker components that ensure the entire audience shares the same sonic experience.



MANUFACTURER

Yamaha

Manufacture Part Number

STAGEPAS 400BT

Product Type

Powered mixer with 2 passive speakers

Speaker Type/Configuration

Two-way bass-relfex speakers

Colour

Black

Date of Availability



MIXING CAPABILITIES



Mixing Channels

8

EQ

2-band Channel EQ, 1-Knob Master EQ

Input Channel Functions

Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8

Output Channel Functions

Feedback suppressor, 1-Knob Master EQ™

Mixer/Pre-Amp

Yes

I/0 INPUT/OUTPUT



Inputs

2 x XLR, 1 x XLR-1/4" combo (mic/line), 1 x XLR-1/4" combo (mic/line/Hi-Z), 4 x 1/4" TS (dual stereo), 1 x Dual RCA Stereo

Phantom Power

+30V, Channel 1, 2

Outputs

2 x 1/4" (speaker), 2 x 1/4" (monitor), 1 x 1/4" (subwoofer) (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF

Bluetooth

Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m

Effects

1 x 1/4" , Reverb foot switch

STAGEPAS Editor (iOS/Android app)

Input Channel Function Hi-Z

CH4

                                       EQ High

HIGH Shelving: 8 kHz

                                       EQ Low

LOW Shelving: 100 Hz

                                       EQ MID

-

AUDIO



On-Board Processors

SPX digital reverb (4 program, parameter control)

On-Board Amplifiers

Maximum output power @4ohms

400W (200 W + 200 W) (Dynamic)

360W (180W + 180W) (Continuous)

Frequency Response/Range

55 Hz - 20 kHz

Crossover Frequency

2100 Hz FIR-X tuning™ (linear phase FIR filter)

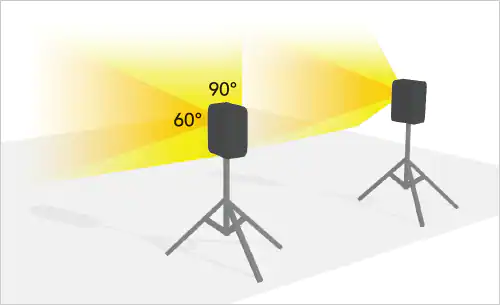

Coverage Pattern

Omni Directions

Nominal Coverage H

90 degrees

Nominal Coverage V

60  degrees

Floor Monitor Angele

50 degrees

Speaker Driver Size LF

8" (20 cm) cone

Speaker Driver Size HF

1" (2.54 cm) voice coil compression driver

OUTPUT



Total Output Power/Watt Rating

400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)

Maximum Output Power Level (1m on axis) Peak  SPL

125 dB SPL / speaker

Input Connectors I/O

INPUT: XLR-3-31 x1

INPUT2: Phone x2

INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1)

LINK OUT: XLR x 1

Output Connectors

LINK OUT: XLR x 1 Link Out, 1 x XLR Thru

Signal Processors

D-CONTOUR: FOH/MAIN, MONITOR, OFF

Cooling

Natural Convection

Power Source

Standard IEC AC cable

Power Rating

400W Continuous

Power Requirements

100 V - 240 V 50 Hz/60 Hz

Power Consumption/Wattage

30 W (Idle), 70 W (1/8 Power)

Pole Socket

34.8-35.2 mm pole socket with StageLok™

Flying & Mounting Options

Pole, Floor

Enclosure Type

Cabinet material molded

Enclosure Material

ABS, Black Finish

Dimensions  W

11.37" (speaker), 12.12" (mixer)

                        H

18.58" (speaker), 7.08" (mixer)

                        D

10.82" (speaker), 4.56" (mixer)

Mounting Options

Floor Standing

Net Weight

18.3 kg (40.3 lbs)

2 x Speaker 7.7kg

1 Mixer 2.9kg)

Accessories

Cover panel

Power cord (2m)

2 x Speaker cables (6m)

12 x Non-skid pads

2 x Ferrite Cores

2 x Cable ties

Handle: 1 x Top

Options

Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF

Packaging

Whole PA System Unit

PRODUCT SHIPPING INFO



Package Dimensions



Net Weight

40.34 lbs. (total), 16.97 lbs. (2 x speaker), 6.36 lbs. (mixer)

Package Weight

41.5 lbs

ASIN



Item Manufacturer

STAGEPAS 400BT

Manufacture  Origin

Indonesia
