Yamaha STAGEPAS 1K 1000 watt 5-channel Portable Column PA System
1000W, portable PA system with 5 channel digital mixer, 12" subwoofer, 10 x 1.5" driver line array speaker, Bluetooth input, SPX digital reverbs, 1knob EQ and multi-band compressor for master output.
Key Features
- Column-style, all-in-one PA system
- 1,000W peak output
- Integrated 5-channel mixer
- Bluetooth connectivity
- 1000W (HF:190W+LF:810W) Class-D power output
- Best in class 12" subwoofer
- 10x 1.5" drivers for slim line array speaker
- Digital mixer (3 mono mic/line + 1 stereo line)
- Multi-band compressor "mode" for master output
- 1-knob EQ for per channel
- High resolution SPX digital reverbs (4types, parameter control)
- 2x Hi-Z (high impedance) inputs
- Link out and monitor out

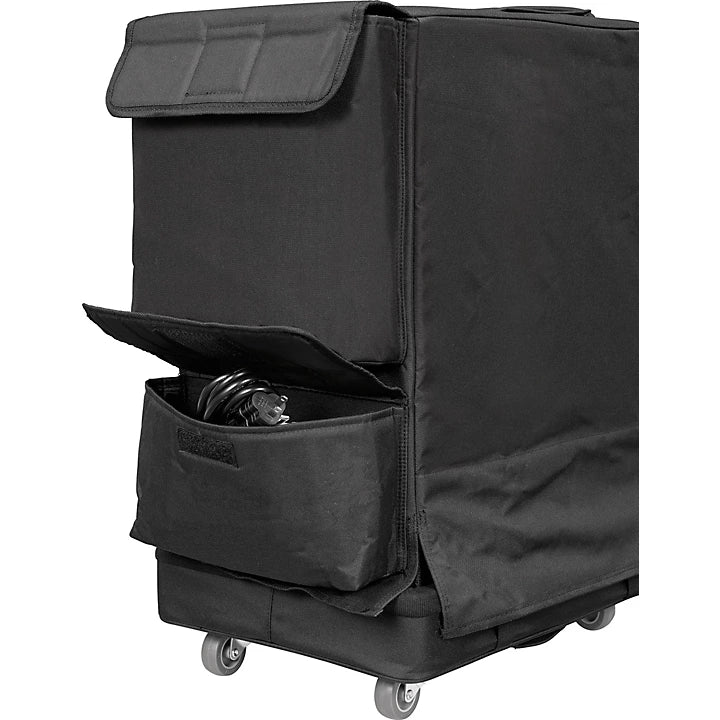

- Dedicated cover included
- Optional reverb foot switch
- Optional dolly for more portability
Description

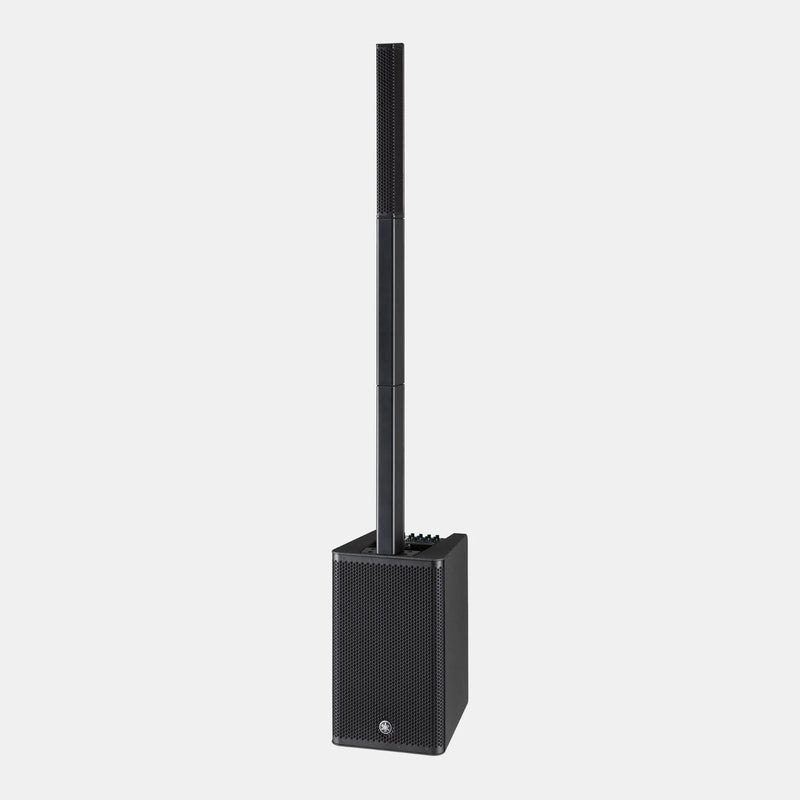

The Yamaha STAGEPAS 1K is an all-in-one PA system you can take anywhere. It’s light enough for one person to carry and set up in one minute. The STAGEPAS 1K delivers wide coverage, thanks to an array of ten 1.5" drivers in the column section. The lightweight subwoofer base provides ample low end with its 12" driver. The Yamaha-pioneered one-knob EQ offers fast, accurate setups so you can get back to your music or presentation. Even users with no PA operation experience will be able to produce high-quality sound in under a minute. With simple setup and control, you’re able to focus on your performance.
Onboard amplifier and 12" subwoofer
The STAGEPAS 1K has a 1,000W Class-D amplifier module. Its compact speaker cabinet is capable of handling an impressive SPL (sound pressure level) of 119dB. The 12" subwoofer base provides deep, powerful bass response, yet it still achieves the smallest-class cabinet on the market for a subwoofer of this size and power. Yamaha’s own Twisted Flare Port technology reduces port wind noise that can occur with compact bass-reflex subwoofers.

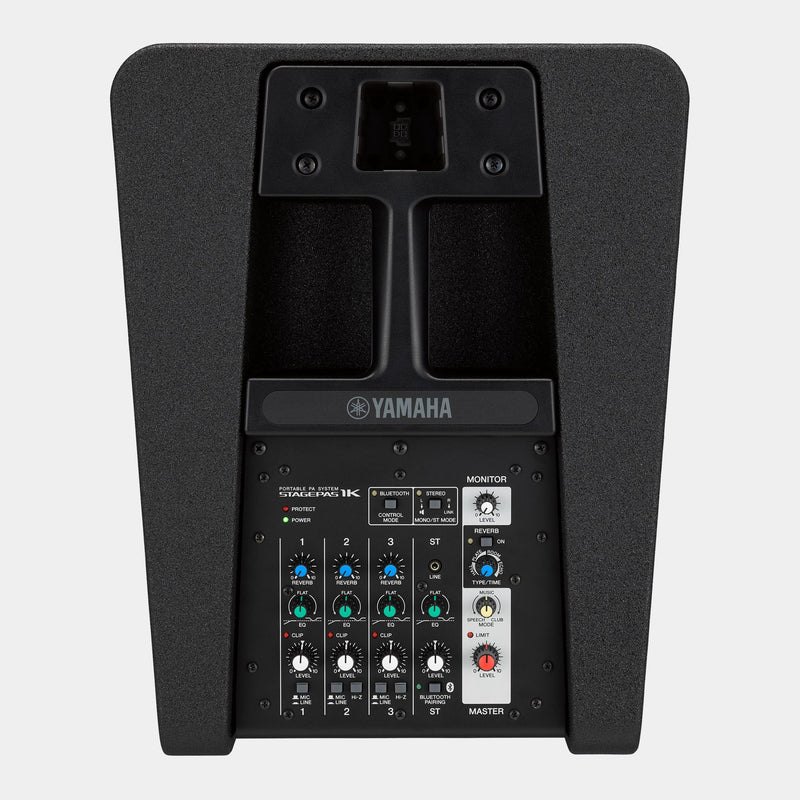

5-channel digital mixer
With outstanding flexibility, the 5-channel digital mixer makes it easy to sound your best. It features one-knob EQ for optimized, multi-band equalization and industry-standard SPX reverb. There’s also a Mode control for master output compression settings that match various applications, such as speech or music. Each of these functions can be set via a single knob, and have simplified many of the tough tasks, like EQ and compression, to get you great sound quickly.

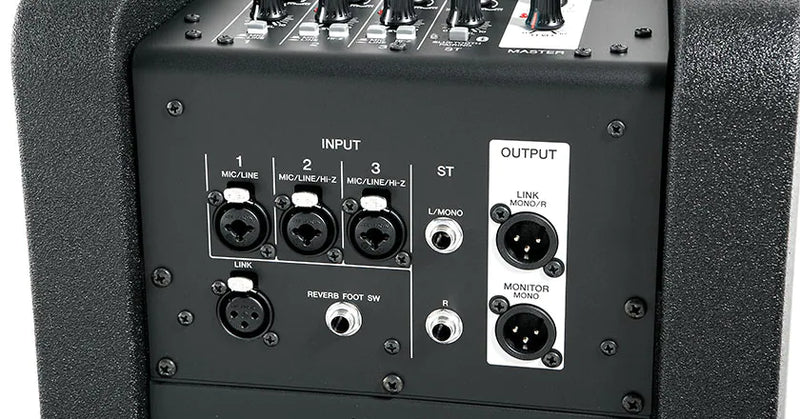

Flexible connectivity
The STAGEPAS 1K features three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. In addition to TRS 1/8" inputs, the stereo connections support playback with Bluetooth devices, as well as a wide range of input sources, from instruments to CDs, PCs and smartphones.
Technical Specifications
|
MANUFACTURER |
Yamaha |
|
Manufacture Part Number |
STAGEPAS 1K |
|
Product Type |
Powered subwoofer Bass-reflex type Line array speaker: Enclosed |
|
Speaker Type/Configuration |
Bi-Amp, Class D |
|
Colour |
Black |
|
Date of Availability |
|
|
MIXING CAPABILITIES |
|
|
Mixing Channels |
5 (3 mono + 1 ST) |
|
EQ |
1-band Channel EQ |
|
Input Channel Functions |
Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST |
|
Output Channel Functions |
MODE (SPEECH - MUSIC - CLUB) |
|
Mixer/Pre-Amp |
Yes |
|
I/0 INPUT/OUTPUT |
|
|
Inputs |
3 x XLR-1/4" combo, 3 mono mic/line + 1 stereo line/2 mono line 1 x XLR, 2 x 1/4" (L/Mono, R) 1 x 1/8" 3 mono mic/line + 1 stereo line/2 mono line |
|
Outputs |
2 x XLR (link, monitor), 1 Link out, 1 Monitor out |
|
Bluetooth |
Bluetooth Ver.5.0, A2DP (SBC, AAC) |
|
Effects |
1 x 1/4" , Reverb foot switch STAGEPAS Editor (iOS/Android app) |
|
AUDIO |
|
|
On-Board Processors |
DSP SPX digital reverb (4 program, parameter control) |
|
Frequency Response/Range |
37 Hz - 20 kHz |
|
Crossover Frequency |
2100 Hz FIR-X tuning™ (linear phase FIR filter) |
|
Coverage Pattern |
Omni Directions |
|
Nominal Coverage H |
170 degrees |
|
Nominal Coverage V |
30 degrees |
|
Speaker Driver Size LF |
Powered subwoofer: 12” (30 cm) Cone |
|
Speaker Driver Size HF |
Line array speaker: 1.5” (3.8 cm) Cone x 10 |
|
Diaphragm Type |
|
|
LF Driver Power Amp |
950W |
|
HF Driver Power Amp |
150W |
|
OUTPUT |
|
|
Total Output Power/Watt Rating |
1000W (Powered subwoofer: 810W, Line array speaker : 190W) |
|
Maximum Output Power Level (1m on axis) Peak SPL |
119 dB SPL |
|
Input Connectors I/O |
INPUT: XLR-3-31 x1 INPUT2: Phone x2 INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1) LINK OUT: XLR x 1 |
|
Output Connectors |
LINK OUT: XLR x 1 Link Out, 1 x XLR Thru |
|
Signal Processors |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
|
Cooling |
Natural Convection |
|
Power Source |
Standard IEC AC cable |
|
Power Rating |
800W Continuous |
|
Power Requirements |
Depending on area of purchase: 100V 50Hz/60Hz 110V/120V 60Hz 220V-240V 50Hz/60Hz |
|
Power Consumption/Wattage |
25 W (Idle), 85 W (1/8 power) |
|
Pole Socket |
35mm with 2-way features (0 or 7 degrees) |
|
Flying & Mounting Hardware |
Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) |
|
Enclosure Type |
Cabinet material molded |
|
Enclosure Material |
ABS, Black Finish |
|
Dimensions W |
13.1" System: 334 x 2,000 x 418 mm (maximum) Line array speaker: 67 x 582 x 86 mm Powered subwoofer: 334 x 550 x 418 mm |
|
H |
21.6" (sub), 66.5" (array) |
|
D |
16.4" |
|
Mounting Options |
Floor Standing |
|
Net Weight |
50.7 lbs. |
|
Accessories |
Power cord x 1, Cover x 1 Handle: 1 x Powered subwoofer |
|
Options |
Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch) for reverb ON/OFF |
|
Packaging |
Whole System Unit |
|
PRODUCT SHIPPING INFO |
|
|
Package Dimensions |
|
|
Net Weight |
System: 23.0kg (maximum) Line array speaker: 1.8kg Powered subwoofer: 20.0kg Spacer: 0.6kg (each) |
|
Package Weight |
52 lbs |
|
ASIN |
|
|
Item Manufacturer |
STAGEPAS 1K |
|
Manufacture Origin |
Indonesia |
