Description

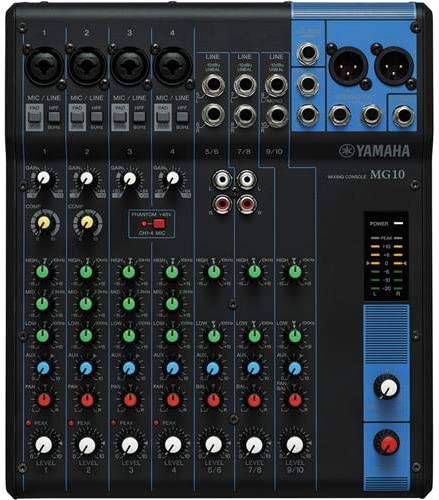

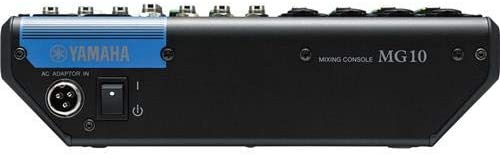

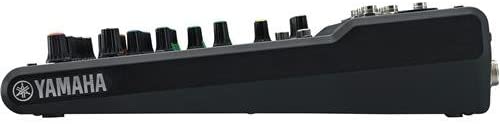

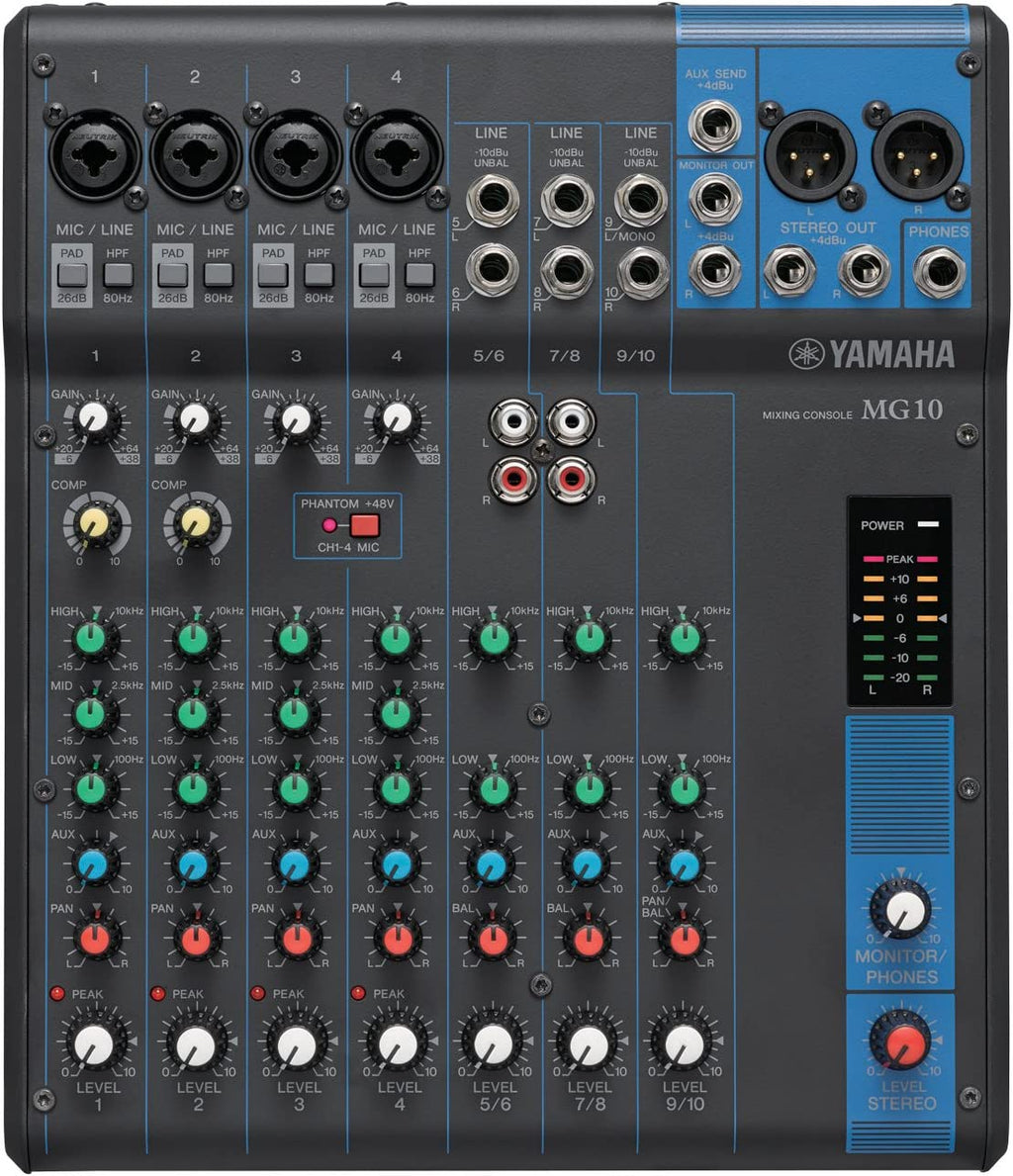

Yamaha MG10 10-channel Mixer with Effects
10-channel Analog Mixer with 4 Microphone Preamps, 3 Dedicated Stereo Line Channels, 1 Aux Send, EQ, and 1-knob Compressors.
Road Tough. Studio Ready
Now in its third incarnation, the MG Series embodies the pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.
Yamaha Mixer MG10 key Features
- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
D-PRE discrete Class-A mic preamps deliver clean and natural sound
Nobody wants to hear mics that are plugged into thin, distorted, or underpowered preamps. MG Series mixing consoles employ Yamaha's transparent D-PRE preamps, which provide more power with lower impedance, delivering natural-sounding bass and smooth highs. D-PREs simply sound good - without hyping any specific elements of your mix.
One-knob compressors provide easy-to-use dynamics control
When you're in the midst of a live event, you don't have time to tweak a large number of complex outboard units. To resolve this issue, the Yamaha MG Series of analog mixers features simple, time-saving one-knob compressors. Simply twist a single rotary control and you can dial in livelier guitars, punchier basses, tighter drums, and well-defined vocals.
EQ and highpass filter allow for effective sound-shaping
When tweaking your sound to perfection or trying to remove unwanted frequencies, an effective and powerful EQ is necessary for building a successful mix. Featuring equalizers on all mono channels, the Yamaha MG Series mixing consoles provide you with ample control over the tonal balance of your mix. Additionally, a highpass filter allows you to get rid of any mud that might be present in your mix by eliminating unwanted low-frequency noise.
High quality op-amp ensures transparent sound reproduction
The Yamaha MG Series utilizes new, high-quality MG01 op-amps, ensuring that your mix sounds its best. When designing these op-amps, Yamaha focused on sound quality, rather than prioritizing electrical design and efficiency.
Technical Specifications
|
Manufacturer |
Yamaha |
|
Product Manufacturer Model Number |
MG10 |
|
Date First Available |
July 10, 2007 |
|
Color |
Black |
|
Mixer type |
Analog |
|
Usage |
Mixing |
|
Number of Channels |
10 |
|
Computer Connectivity |
|
|
Wattage |
22.9W |
|
Faders |
N/A |
|
Inputs-Mic Pre-Amps |
4 x Combo (TRS/XLR) |
|
Phantom Power |
+ 48V |
|
Monitor Out |
1 |
|
Inputs-Line |
6 x TRS |
|
Inputs - Other |
4 x RCA |
|
Output -Main |
2 x XLR, 2 x TRS |
|
Output-Direct |
|
|
Output-Other |
2 x TRS (Monitor Out) |
|
Aux Send |
1 |
|
Send/Return/I/O |
1 x TRS |
|
Bus Stereo |
1 AUX [FX] 1 |
|
PAD |
26 db Mono |
|
HPF |
80 Hz, 12 dB/oct (Mono) |
|
COMPRESSOR |
1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
|
EQ High Gain |
+15 dB/-15 dB, Frequency: 10 kHz shelving |
|
EQ MID Gain |
+15 dB/-15 dB, Frequency: 2.5kHz peaking |
|
EQ Low Gain |
+15 dB/-15 dB, Frequency: 100 Hz shelving |
|
Headphones |
1 x 1/4" |
|
Peak LED |
LED turns on when post EQ signal reaches 3 dB below clipping |
|
Level Meter |
2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -20, -25, -30 dB] |
|
USB |
N/A |
|
EQ Bands |
3-Band (High, Mid, Low) |
|
Effects |
N/A |
|
Software |
N/A |
|
Rack Mountable |
Yes |
|
Height |
2.8” |
|
Width |
9.6” |
|
Depth |
11.6” |
|
Net Weight |
4.19 LBS |
|
ITEM SHIPPING INFORMATION |
|
|
Item Shipping Weight |
5.5 LBS |
|
Product Dimensions LxWxH |
9.61 x 11.57 x 2.91 inches |
|
ASIN |
MG10YEM |
|
Item Model Number |
MG10 |
|
Country of Origin |
Indonesia |
