Yamaha DXS15mkII, 1100W, 15in Powered Subwoofer, Class D
15" 800W Active Subwoofer with 40Hz-150Hz Frequency Range and 135dB Peak SPL
Delivering powerful low-end reinforcement in a compact enclosure designed for smaller performance spaces, the DXS15mkII band-pass style active subwoofer gives your existing system the deep, rich bass your music deserves. A potent Class-D amplifier drives the 2.5" voice coil magnet and 15" woofer for tight, accurate bass with exceptional clarity and up to 135dB SPL. The rugged wooden enclosure features LINE-X coating for protection against scratches and wear, ensuring it will withstand years of use while maintaining its professional appearance.
Crossover switching allows you to seamlessly match the DXS15mkII with any of Yamaha’s full-range powered speakers by selecting the cutoff frequency best suited to the models in their speaker array. Yamaha’s state-of-the-art DSP processing and protection functions mean the DXS15mkII performs at its peak under the most demanding conditions.
Yamaha DXS15mkII 15" Active Subwoofer Features
- Powerful bass, clarity, and punch for small-to-medium sized venues
- Onboard DSP with cardioid setting, 800-watt (continuous) Class D power amp
- Robust output of up to 135dB from a compact, lightweight package
- 15" driver with a 2.5" voice coil for superb bass response
- 40Hz-150Hz frequency range
- Selectable crossover points at 80, 100, and 120Hz
- Rugged wooden enclosure with band-pass design
- Built-in D-XSUB processing allows you to extend the frequency response even lower
- Cardioid mode for efficient onstage bass management
- Bandpass cabinet is durable and acoustically optimized for maximum sound quality

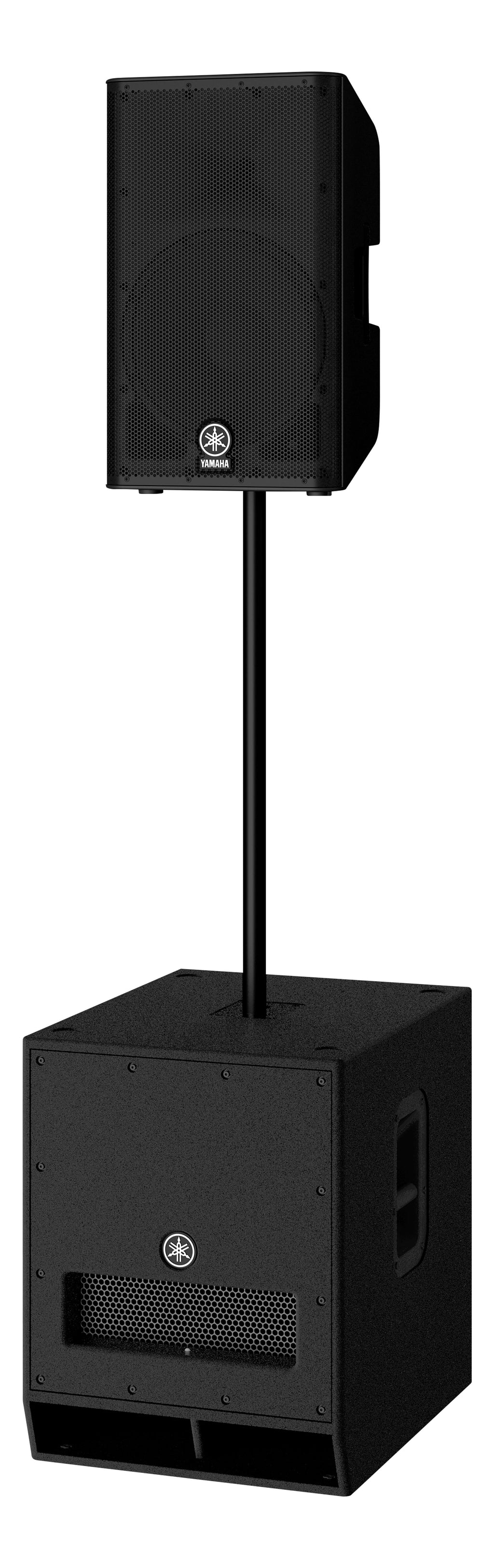

- M20 and 35mm pole socket options provided
High-power Class D amplifier
The Yamaha DXS15mkII employs an 800-watt (continuous) Class D amplifier to serve up rich, solid bass reinforcement. The ample wattage doesn't just let the DXS15mkII get loud, it gives it the headroom needed to reproduce the dynamics and nuances of your music. And because the amplifier doesn't require active cooling, you can run the DXS15mkII at high volume levels for extended periods without distortion or thermal shutdown.
High Grade Sound Quality, Less Distortion w/convection Cooling
Yamaha used a lot of innovative technology to get the maximum sonic quality out of the DXS15mkII powered subwoofer. For example, Yamaha's proprietary D-XSUB processing lets you extend the frequency response of the DXS15mkII for when you really need maximum bass impact, incredibly useful in larger rooms. Also, the acoustically-optimized wooden enclosure is designed to resist distortion at high output levels, greatly enhancing sound quality even at extreme levels.
Easy to integrate

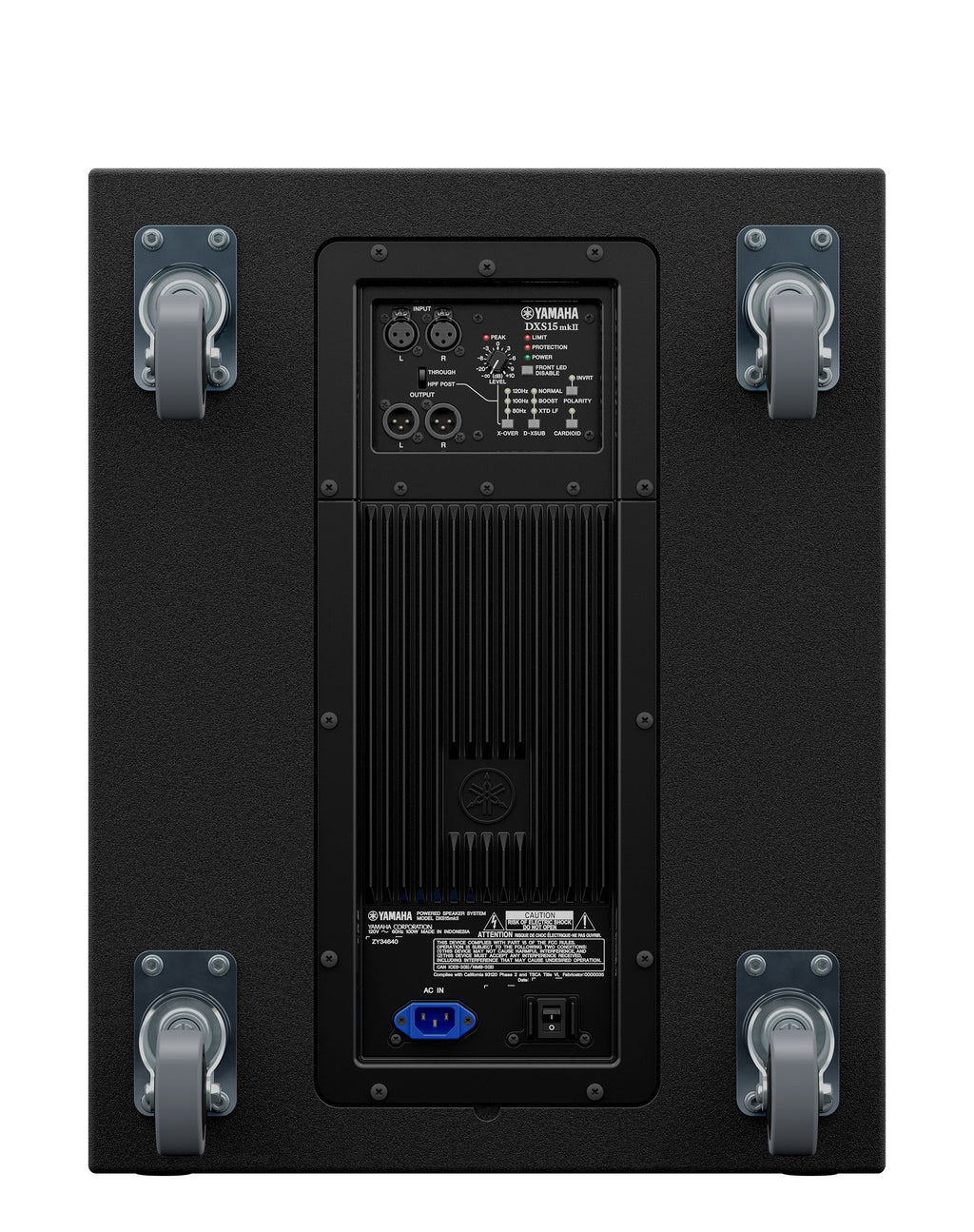

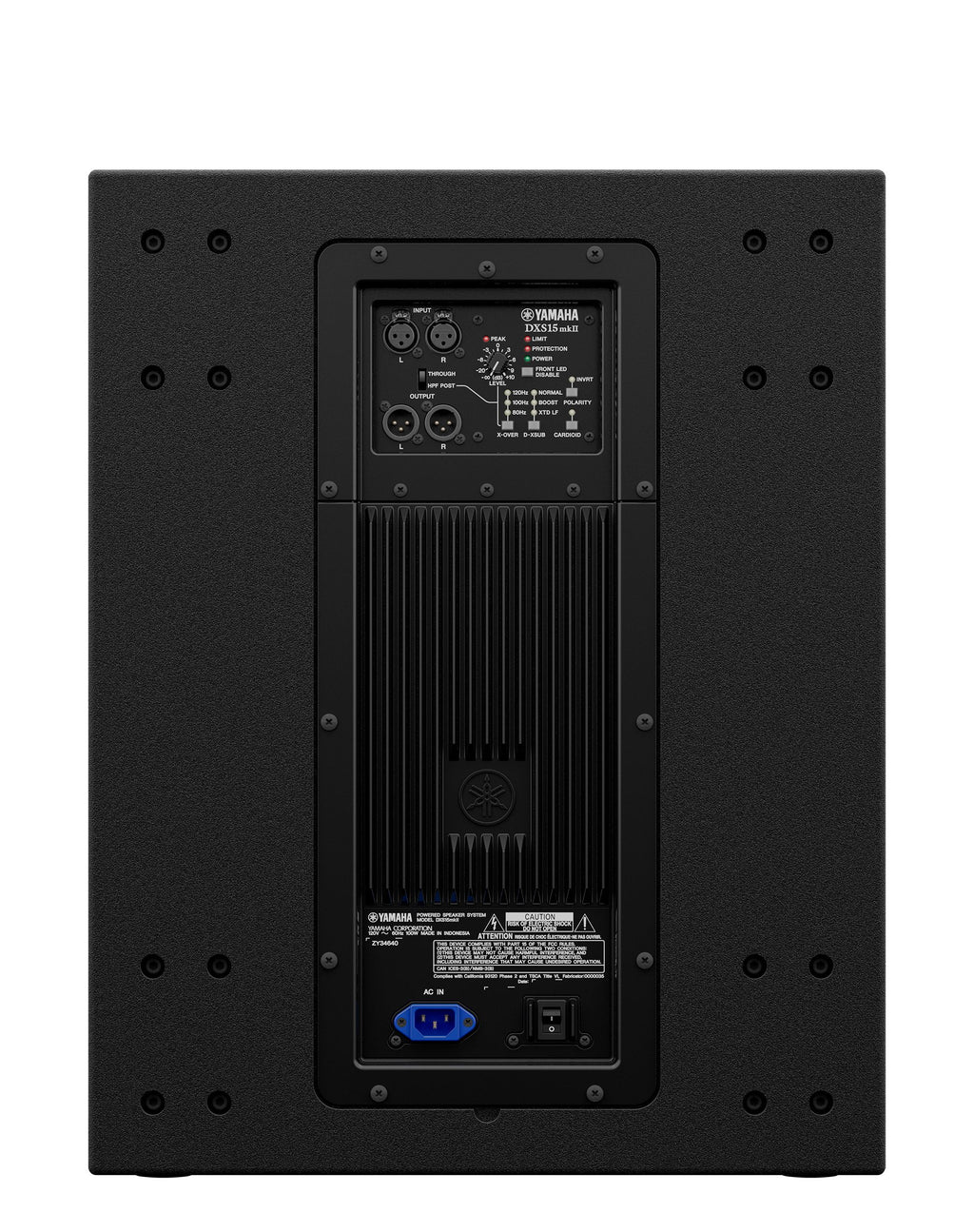

It's easy to add the DXS15mkII powered subwoofer to your DRX loudspeaker system, or any other powered system for that matter. Dual XLR inputs let you connect to your mixer, crossover system, or main speaker throughputs, and parallel XLR outputs make it easy to add additional DXS subwoofers for even more ground-shaking bass reinforcement. Previous models, the outputs passed a full-range audio from the inputs to any connected speakers. On the DXS15mkII, the outputs have a switchable highpass filter, so all the crossover work is done within the subwoofer. With the filter engaged, connected full-range powered speakers can use their full output power to amplify only those frequencies that the DXS15mkII is not. This configuration delivers better overall projection and a more detailed soundstage across the full frequency spectrum.
Technical Specifications
|
Manufacturer |
Yamaha |
|
Manufacture Part Number |
DSX15mkII |
|
Product Type |
Subwoofer |
|
Speaker Type |
15" Powered subwoofer, Band-pass type |
|
Size |
15” |
|
Colour |
Black |
|
Audio Output |
Stereo |
|
Date of Availability |
|
|
AUDIO |
|
|
Frequency Response |
40 Hz - 150 Hz (-10dB) |
|
Coverage Pattern |
Omni Directions |
|
Maximum Peak SPL |
1.35 dB SPL |
|
Driver Size LF |
15”" |
|
Drive Type |
Cone |
|
Driver Size HF |
2.5” Voice Coil" |
|
Driver Type |
Dome |
|
LF Driver Power Amp |
N/A |
|
HF Driver Power Amp |
N/A |
|
Total Output Power/Watt |
Dynamic:1020W / Continuous: 800W |
|
OUTPUT |
|
|
Maximum Output Power |
135dB SPL |
|
I/O Connectors |
INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST) |
|
Signal Processors |
D-XSUB: BOOST, XTD LF, NORMAL |
|
Cooling |
Natural Convection |
|
Power Source |
Standard IEC AC connector |
|
Power Rating |
800W Continuous |
|
Power Consumption/Wattage |
100W |
|
Pole Socket |
35 mm (depth 80 mm) & M20 (threaded depth 25 mm) |
|
Enclosure Type |
Rear Ported, |
|
Enclosure Material |
Meranti Plywood, Durable Polyurea Coating |
|
Dimensions W |
480 mm (18.90”) |
|
H |
611 mm (24.06”) |
|
D |
614 mm (24.17”) |
|
Net Weight |
36.0 kg (79.4lbs) |
|
Flying & Mounting Hardware |
Floor Standing |
|
Accessories |
None- |
|
Options |
None |
|
Packaging |
Single |
|
PRODUCT SHIPPING INFO |
|
|
Product Dimensions |
|
|
Net Weight |
|
|
Package Weight |
79.4 lbs |
|
ASIN |
|
|
Item Manufacturer |
DXS15MKII |
|
Manufacture Origin |
Indonesia |
