Yamaha STAGEPAS 600BT Portable PA System with Bluetooth


Price:
Sale priceTk 100,000.00

Description +-

 Yamaha STAGEPAS 600BT Portable PA System with Bluetooth

680W Portable PA with Reverb-equipped 10-channel Mixer, Two speakers with 10" LF/1.4" HF drivers, and Built-in Stand Mounts.

 680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

  • 680W (340W + 340W) power output
  • High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)

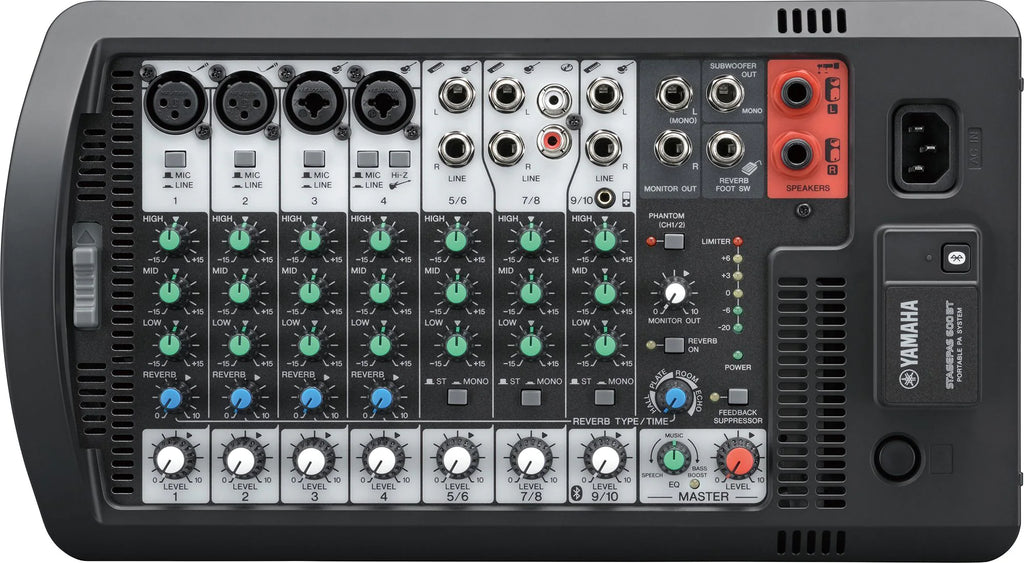

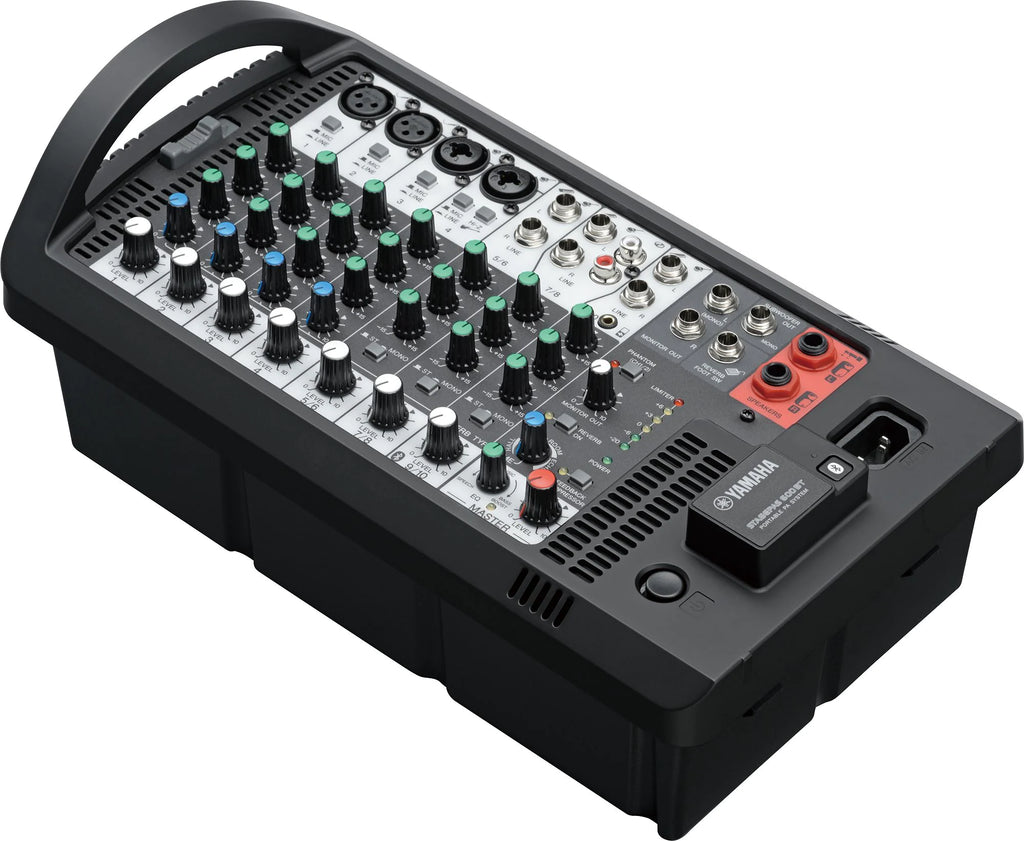

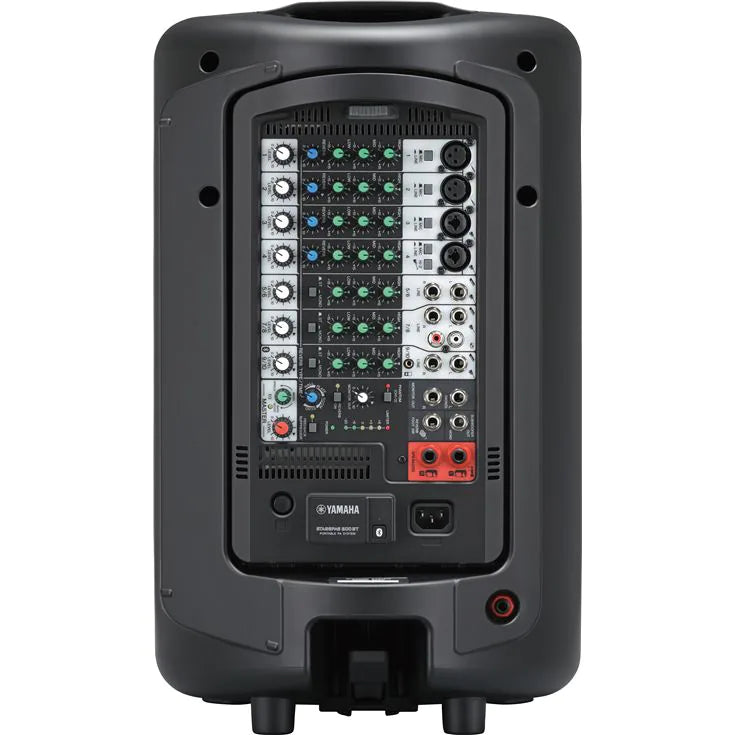

  • Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
  • Bluetooth audio streaming

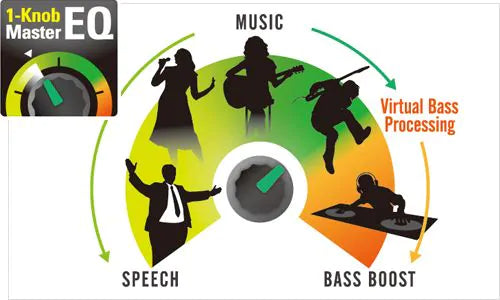

  • 1-Knob Master EQ™ with virtual bass boost

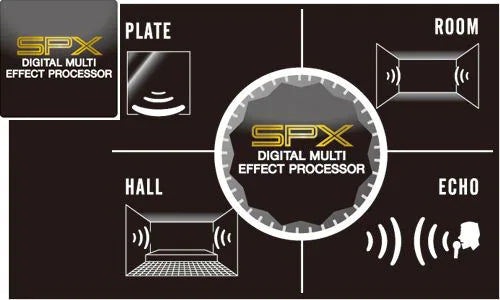

  • High resolution SPX digital reverbs (4 types, parameter control)
  • Onboard feedback suppressor
  • Great-sounding 3-band channel EQ
  • Switchable stereo/ mono inputs
  • Hi-Z (high impedance) inputs
  • Phantom power
  • Monitor and Subwoofer outputs
  • Optional reverb footswitch

 Are you heard clear and loud?

Yamaha STAGEPAS is best suitable for sound reinforcement of your meeting and presentation. The powerful and great sound with fast and easy set up makes your business to the next level.

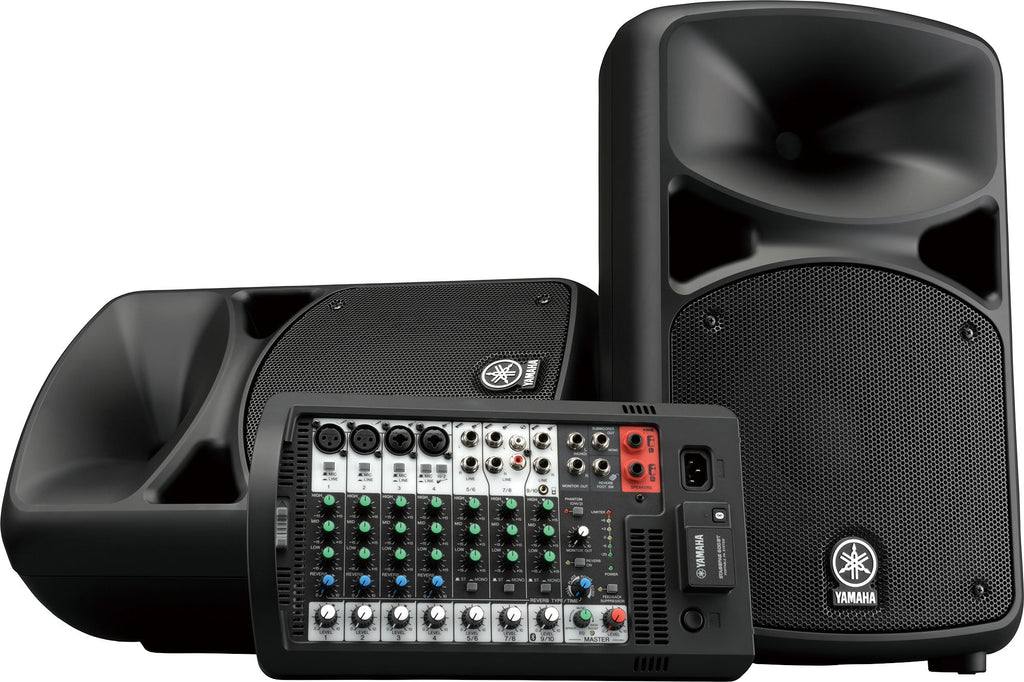

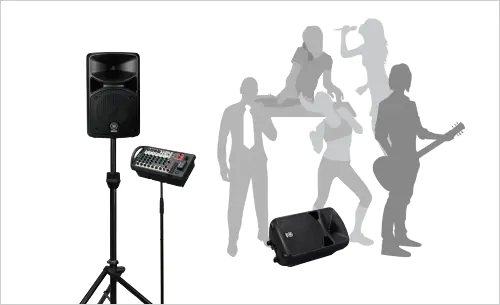

 The Ultimate All-in-One Portable PA System

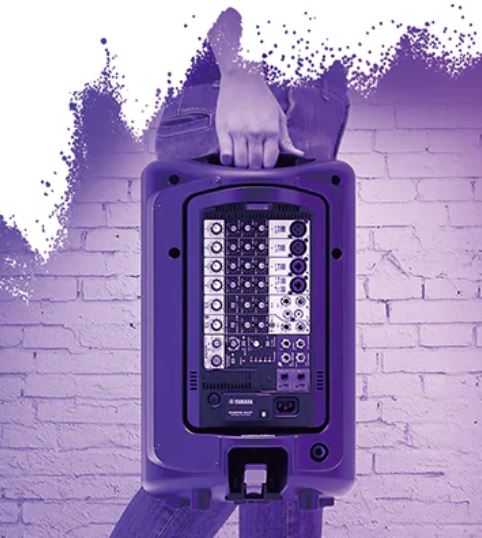

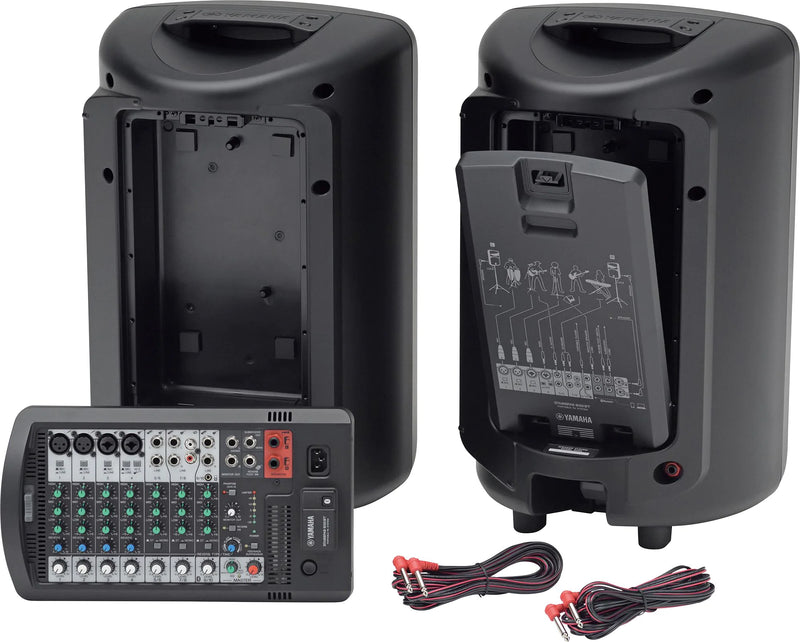

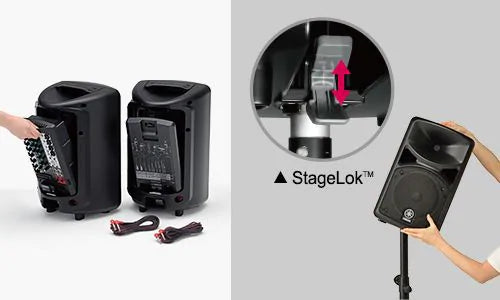

You can take literally anywhere the all-in-one PA system STAGEPAS which is compact and light enough to carry by hand. The two lightweight speakers and a detachable mixer, along with one pair of speaker cables and a power cord, combine into an attractive, compact package that provides the kind of portability that no roadie would ever dare to dream of.

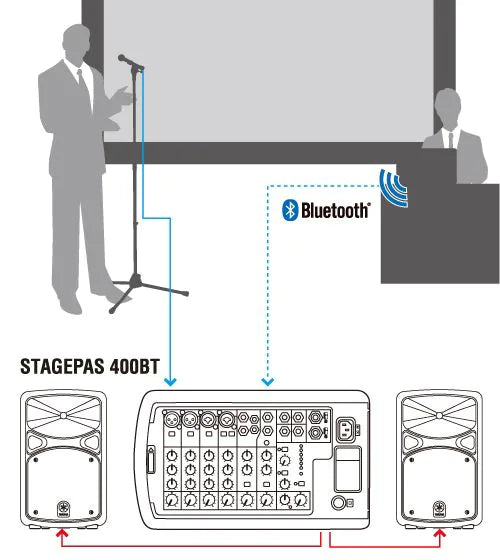

Equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets, the STAGEPAS-BT models let you seamlessly play backing tracks for gigs, or set the tone of parties, conferences, or events with the audio playback of your choice.

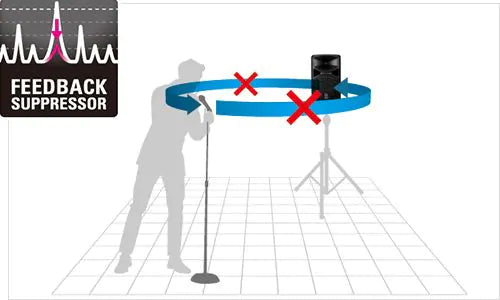

Avoid the uncomfortable feedback that plagues so many sound reinforcement novices and professionals alike. Usually found only on high-end gear, this intelligent function removes feedback automatically with the push of a button, giving you a clear, professional sound.

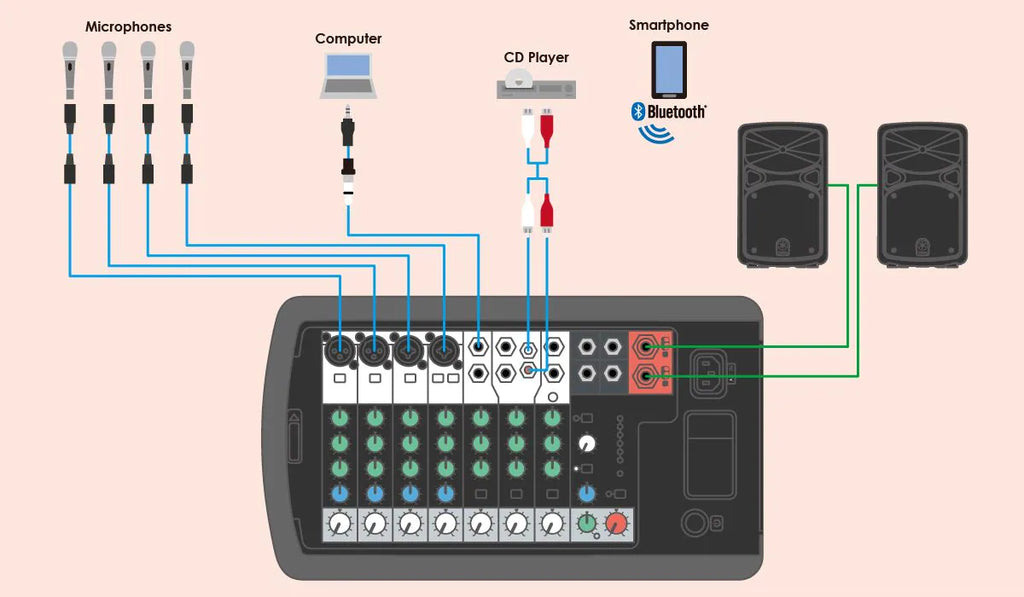

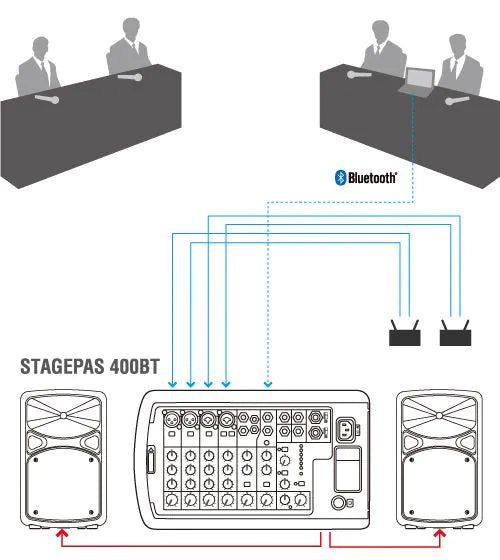

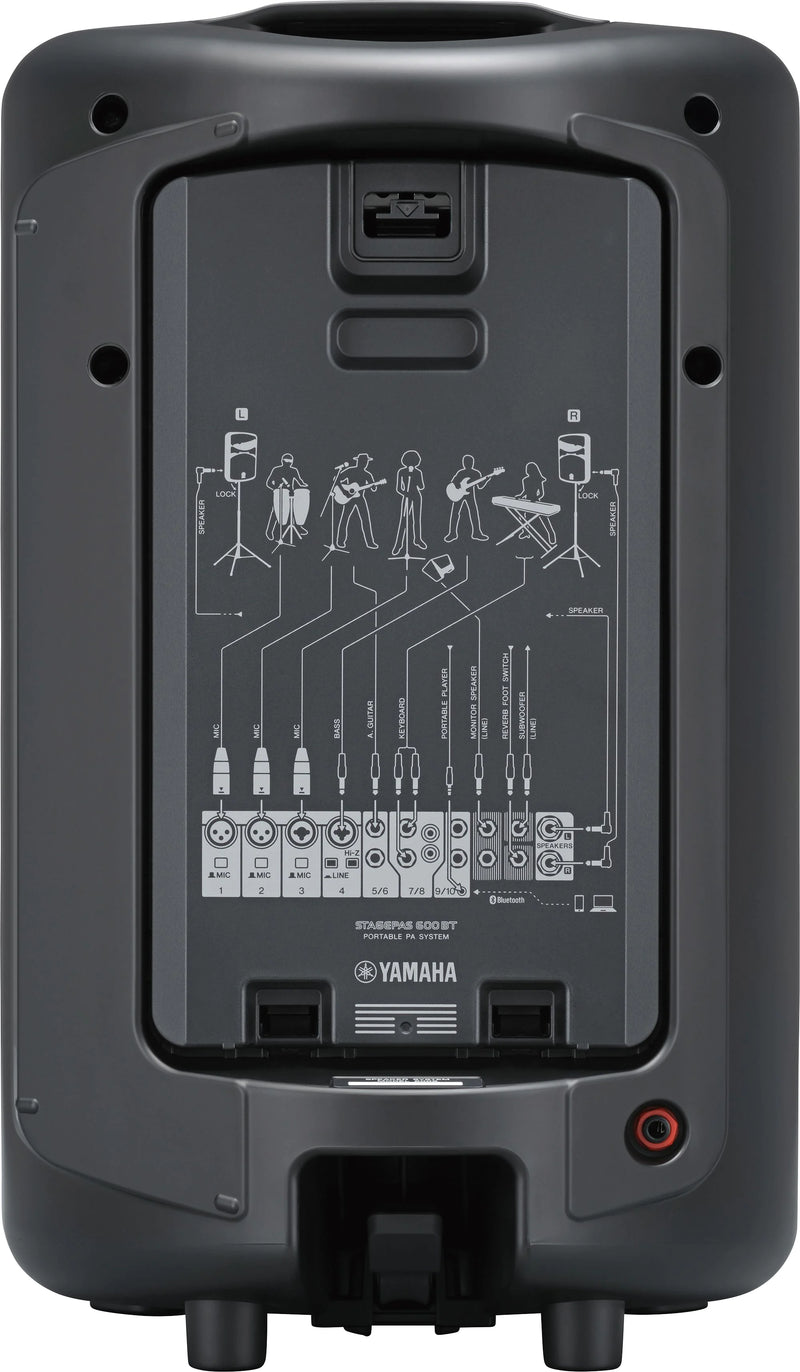

Flexible Connectivity

Equipped with 10 channels or 8 channels respectively, the STAGEPAS 400BT and 600BT offer versatile connectivity, comprehensive channel functions, and seamless expandability that meet the growing demands of a wider range of applications and environments.

For complete detailed info visit:  https://usa.yamaha.com/products/proaudio/pa_systems/stagepas_400bt_600bt/features.html#product-tabs

Technical Specifications

MANUFACTURER

Yamaha

Manufacture Part Number

STAGEPAS 600BT

Product Type

Powered mixer with 2 passive speakers

Speaker Type/Configuration

Two-way bass-relfex speakers

Colour

Black

Date of Availability



MIXING CAPABILITIES



Mixing Channels

10

Number of MIC Pre-Amps

4

EQ

3-band Channel EQ, 1-Knob Master EQ

Input Channel Functions

Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10

Output Channel Functions

Feedback suppressor, 1-Knob Master EQ™

Mixer/Pre-Amp

Yes

I/0 INPUT/OUTPUT



Inputs

2 x XLR

1 x XLR-1/4" combo (mic/line), 1 x XLR-1/4" combo (mic/line/Hi-Z), 4 x 1/4" TS (dual stereo), 1 x Dual RCA Stereo

Phantom Power

+30V (CH1, 2)

Outputs

SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF

2 x 1/4" (speaker), 2 x 1/4" (monitor), 1 x 1/4" (subwoofer)

Bluetooth

Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m

Effects

1 x 1/4" , Reverb foot switch

STAGEPAS Editor (iOS/Android app)

Input Channel Function Hi-Z

CH4

                                       EQ High

HIGH Shelving: 8 kHz

                                       EQ Low

LOW Shelving: 100 Hz

                                       EQ MID

MID peaking: 2.5 kHz

AUDIO



On-Board Processors DSP

SPX digital reverb (4 program, parameter control)

On-Board Amplifiers

680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)

Frequency Response/Range

55 Hz - 20 kHz

Crossover Frequency

2100 Hz FIR-X tuning™ (linear phase FIR filter)

Playback

Blue Streaming

Coverage Pattern

Omni Directions

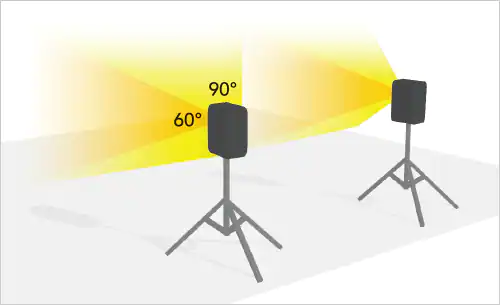

Nominal Coverage H

90 degrees

Nominal Coverage V

60  degrees

Floor Monitor Angele

50 degrees

Speaker Driver Size LF

10" (25 cm) cone

Speaker Driver Size HF

1.4" (3.56 cm) voice coil compression driver

OUTPUT



Total Output Power/Watt Rating

680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)

Maximum Output Power Level (1m on axis) Peak  SPL

129 dB SPL / speaker

Input Connectors I/O

INPUT: XLR-3-31 x1

INPUT2: Phone x2

INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1)

LINK OUT: XLR x 1

Output Connectors

LINK OUT: XLR x 1 Link Out, 1 x XLR Thru

Signal Processors

D-CONTOUR: FOH/MAIN, MONITOR, OFF

Cooling

Natural Convection

Power Source

Standard IEC AC cable

Power Rating



Power Requirements

100 V - 240 V 50 Hz/60 Hz

Power Consumption/Wattage

35 W (Idle), 100 W (1/8 Power)

Pole Socket

34.8-35.2 mm pole socket with StageLok™

Flying & Mounting Options

Pole, Floor

Enclosure Type

Cabinet material molded

Enclosure Material

ABS, Black Finish

Dimensions  W

13.18" (speaker), 13.7" (mixer)

                        H

21.45" (speaker), 7.75" (mixer)

                        D

12.55" (speaker), 5.31" (mixer)

Mounting Options

Floor Standing

Net Weight

56.43 lbs. (total)

24.03 lbs. (2 x speaker)

8.37 lbs. (mixer)

Accessories

Cover panel

Power cord (2m)

2 x Speaker cables (6m)

12 x Non-skid pads

2 x Ferrite Cores

2 x Cable ties

Handle: 1 x Top

Options

Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF

Packaging

Whole PA System Unit

PRODUCT SHIPPING INFO



Package Dimensions

Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm

Net Weight

25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)

Package Weight

57.0  lbs

ASIN



Item Manufacturer



Manufacture  Origin

Indonesia
