Description +-

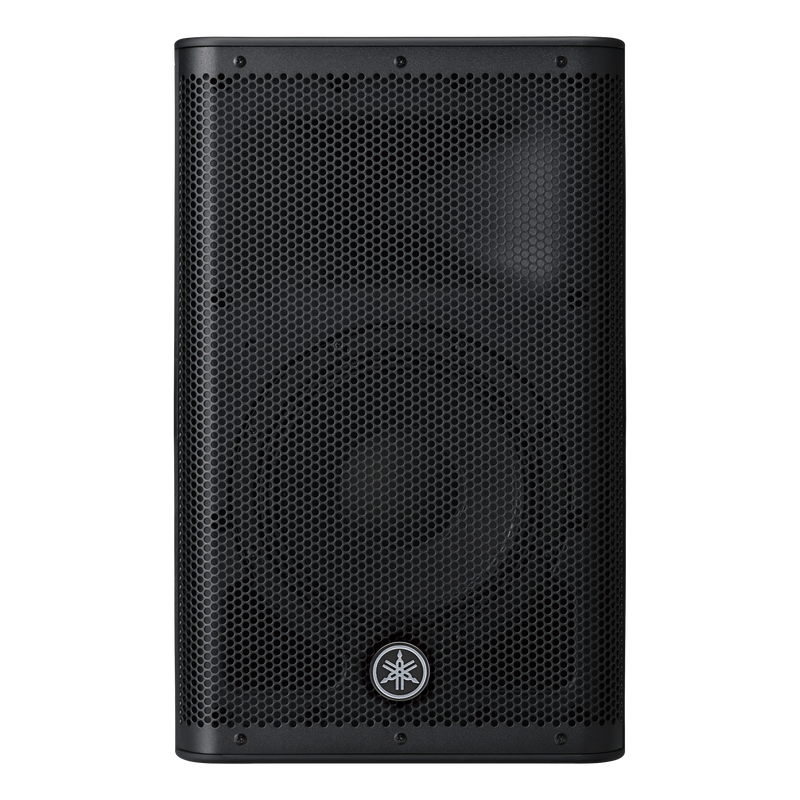

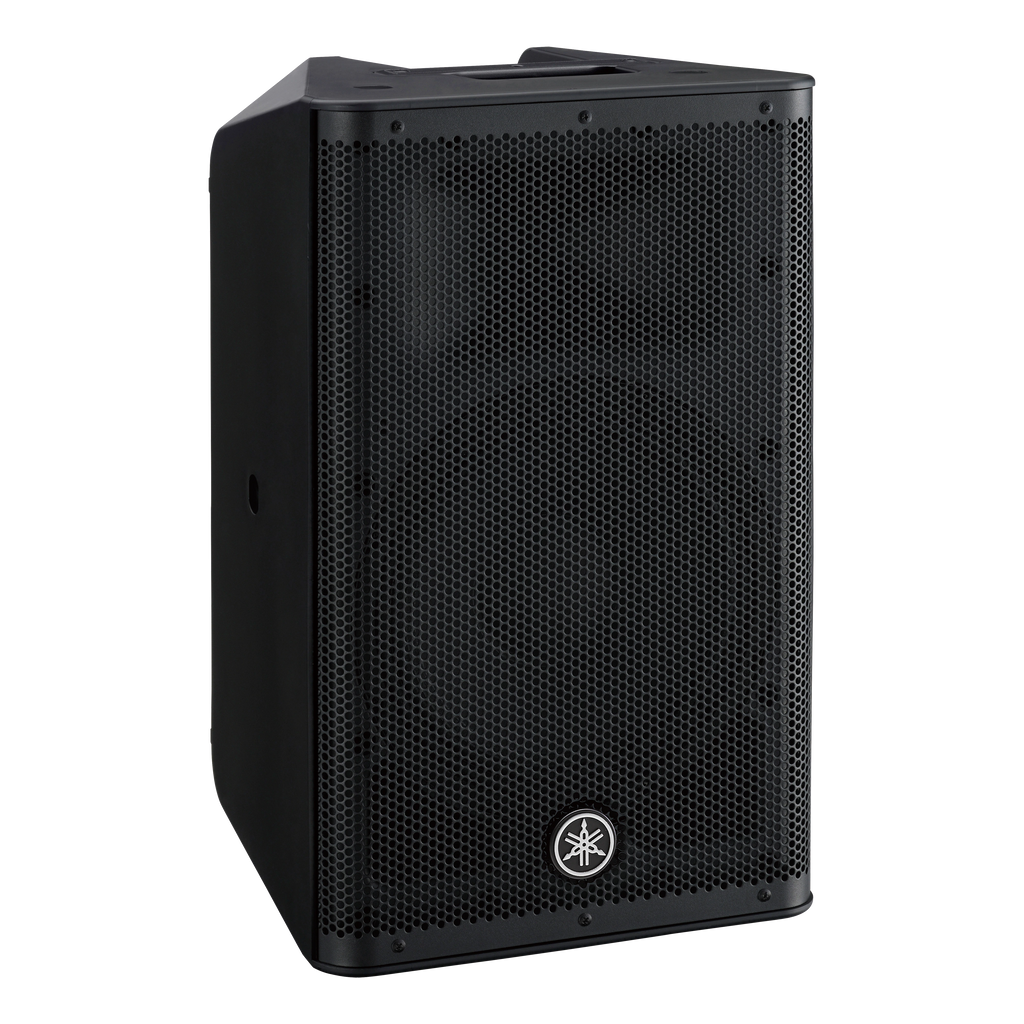

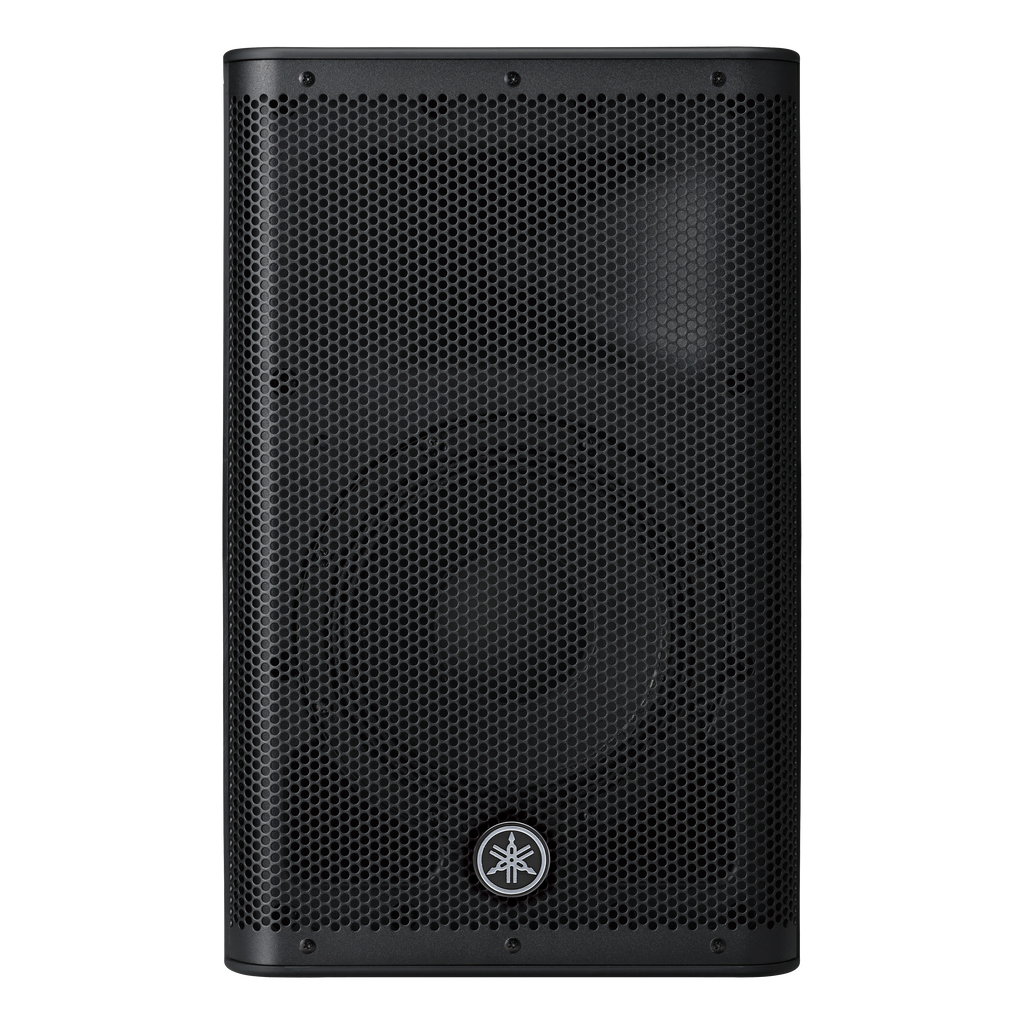

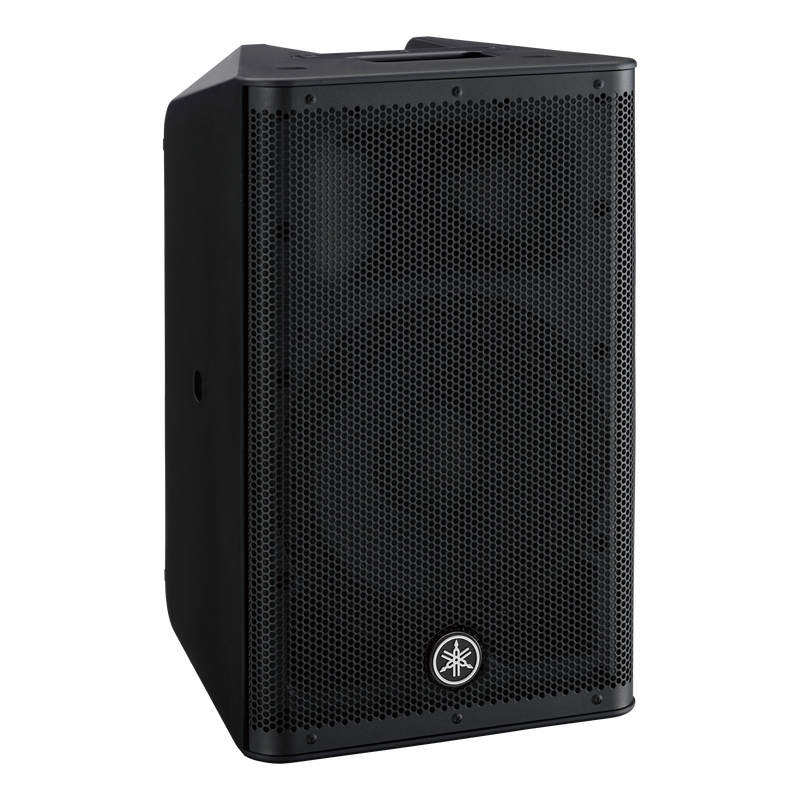

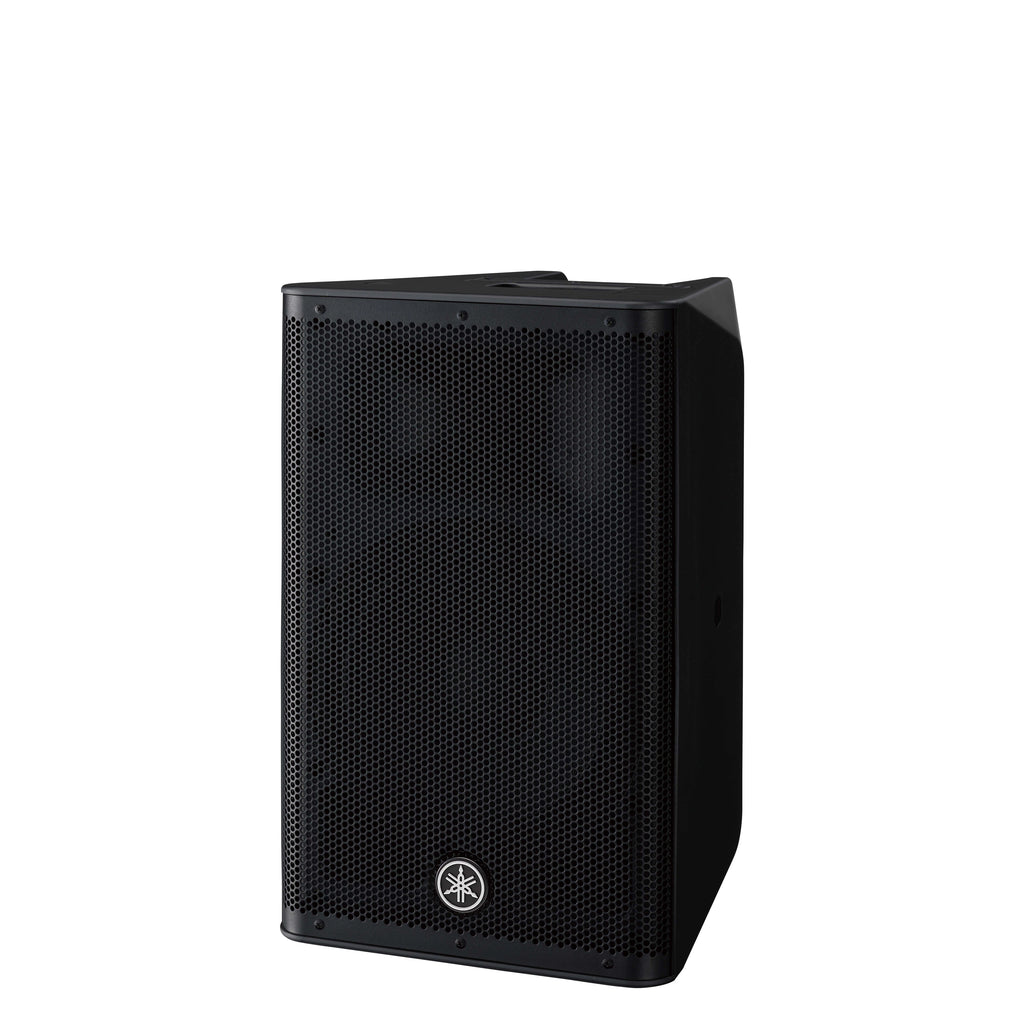

Yamaha DXR10mkII, 1100W 10 inch Powered Loud Speaker
10" Powered Speaker, with 1,100W (Peak) 2-way Operation (each)
Yamaha's DXR10mkII powered loudspeakers, part of their DXR/DXS line of Class D–powered PA speakers. Housed in durable, compact ABS enclosures, the 10" DXR10mkII 2-way speakers represent Yamaha's latest sound reinforcement technology. While they're ready for duty as part of a full-scale stage rig, DXR10mkII speakers pack maximum performance into an efficient design that's also perfect for gigging musicians. And thanks to the built-in 3-channel mixer, the DXR10mkII is perfect for those times when you need sound reinforcement but don't need an entire PA system.
Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII’s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system - the DXR10mkII delivers without compromising sound quality and power.
Yamaha DXR10mkII Powered Speaker Key Features
- 10″ low-frequency driver and 1.75″ neodymium compression driver
- Onboard Class-D power with 1,100W peak output
- 56Hz–20kHz frequency response
- 132dB maximum SPL
- High-powered portable loudspeaker with multi-use flexibility
- 10" speaker, powered by 1,100 watts of peak power in a 2-way design
- Built-in 3-channel mixer lets you connect microphones or line-level sources directly without an entire PA system
- Built-in DSP for phase optimization and transparent dynamic control
- ABS cabinet is durable, with a low-resonance design for maximum sound quality
Technical Specifications
|
Manufacturer |
Yamaha |
|
Manufacture Part Number |
DXR10mkII |
|
Product Type |
Powered Speaker |
|
Speaker Type/Configuration |
10" 2-way Bi-amp powered speaker, Bass-reflex type |
|
Channels |
3 Channel Mixer |
|
Mixer/Pre-Amp |
Yes |
|
Colour |
Black |
|
Audio Output |
RCA Stereo |
|
Date of Availability |
|
|
AUDIO |
|
|
Frequency Response |
56Hz - 20kHz |
|
Crossover Frequency |
2300 Hz, FIR-X tuning™ (linear phase FIR filter) |
|
Coverage Pattern |
Omni Directions |
|
Nominal Coverage H |
90 degree |
|
Nominal Coverage V |
60 degree |
|
Driver Size LF |
Diameter:10" Cone Woofer Voice Coil:2" Magnet:Ferrite |
|
Driver Size HF |
Diaphgram Size 1.75” Neodymium compression driver |
|
Diaphragm Type |
1" throat compression driver, Magnet:Neodymium |
|
LF Driver Power Amp |
950W |
|
HF Driver Power Amp |
150W |
|
OUTPUT |
|
|
Total Output Power/Watt |
Dynamic:1100W Class D (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
|
Maximum Output Power Level (1m on axis) Peak SPL |
132dB SPL |
|

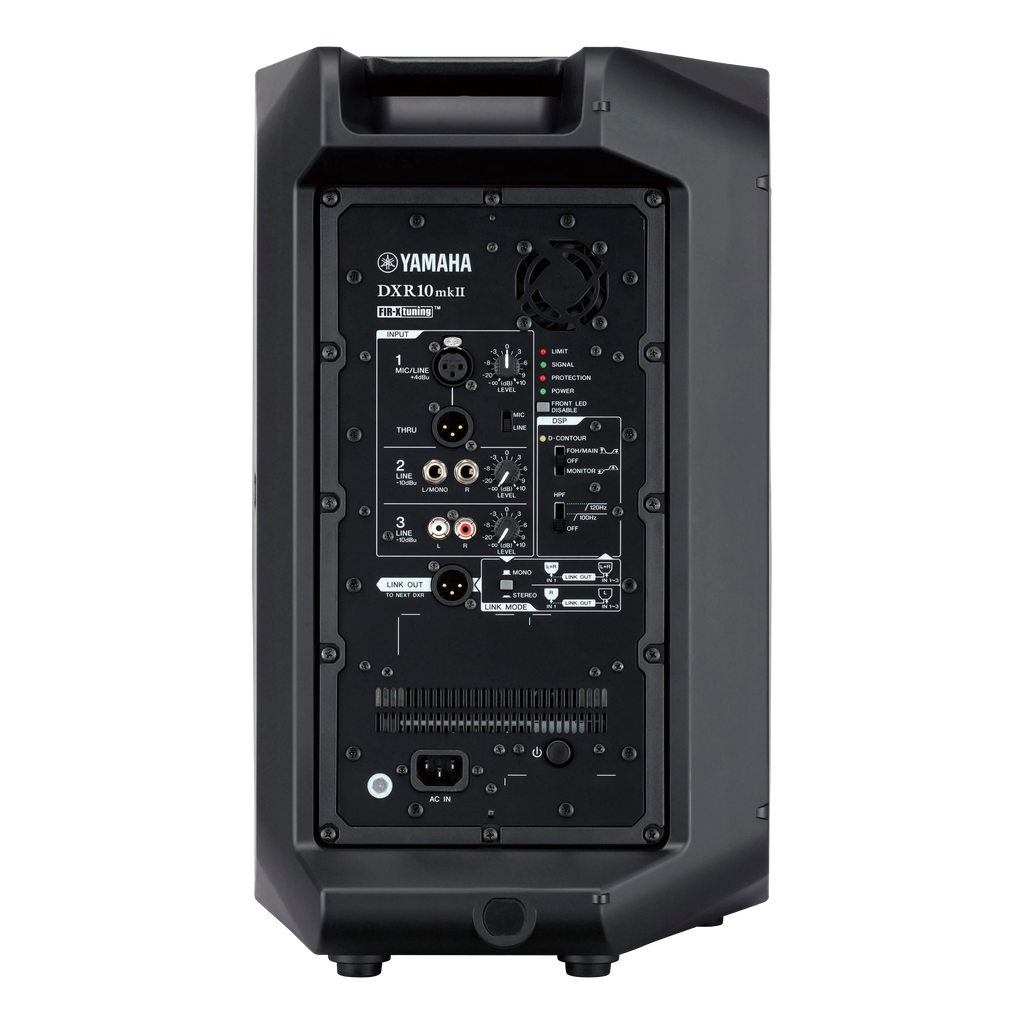

Input Connectors I/O |
INPUT1: XLR-3-31 x1 comoi (mic/line) INPUT2: Phone x2 (L/mono, ) INPUT3: RCA PIN x 2 THRU: XLR3-32 x 1 (Parallel with INPUT 1 ) |
|
Output Connectors |
LINK OUT: XLR x 1 Link Out, 1 x XLR Thru |
|
Signal Processors |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
|
Cooling |
Natural Convection |
|
Power Source |
Standard IEC AC Cable |
|
Power Rating |
800W Continuous |
|
Power Requirements |
100V - 240V, 50Hz/60Hz |
|
Power Consumption/Wattage |
90 Watt |
|
Pole Socket |
35mm with 2-way features (0 or 7 degrees) |
|
Flying & Mounting Hardware |
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) Pole, Floor Wedge, Fly |
|
Enclosure Type |
Rear Ported, Meranti Plywood, Durable Polyurea Coating, Black Colour |
|
Enclosure Material |
ABS |
|
Dimensions W |
305mm (12") |
|
H |
502mm (19 6/8") |
|
D |
310mm (12 2/8") |
|
Net Weight |
13.9kg (30.6lbs) |
|
Accessories |
UB-DXR10 (U-bracket), Material: ABS (Matte Finish, Black) |
|
Packaging |
Single |
|
PRODUCT SHIPPING INFO |
|
|
Package Dimensions |
|
|
Net Weight |
|
|
Package Weight |
30.6 lbs. |
|
ASIN |
|
|
Item Manufacturer |
DXR10mkII |
|
Manufacture Origin |
Indonesia |
